| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

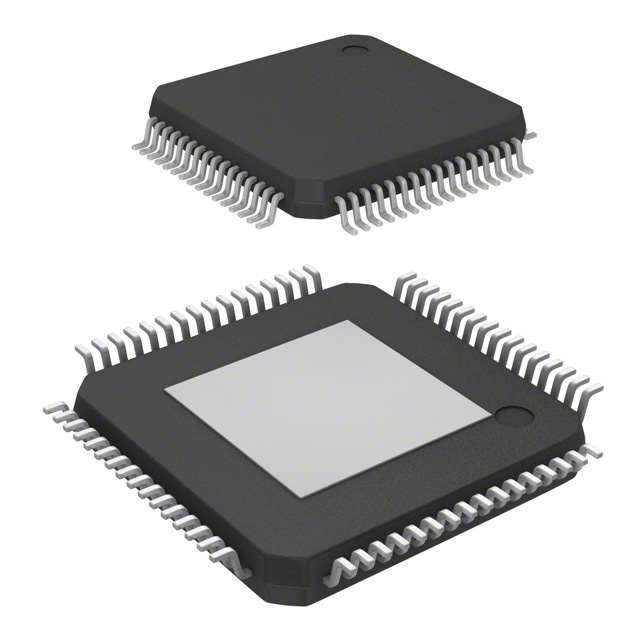

This NXP Semiconductors S912ZVMC64F3MKHR is a 16-bit microcontroller from the S12Z core family. It offers 64KB of FLASH program memory and 512 bytes of EEPROM, complemented by 4KB of RAM.
Designed for embedded applications, this device operates at speeds up to 32MHz and supports a wide voltage range from 3.5V to 40V. It includes peripherals such as DMA, POR, PWM, and WDT, along with data conversion capabilities (A/D 9x12b).
Connectivity options include CANbus, SCI, and SPI interfaces, with 31 I/O lines available. The microcontroller is housed in a 64-LQFP Exposed Pad package, measuring 10x10mm, and is designed for surface mount installation.
It operates within a temperature range of -40°C to 125°C (TA). The product is listed as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 64KB (64K x 8).
The RAM size is 4K x 8.
The operating temperature range is -40°C to 125°C (TA).
It is in a 64-LQFP Exposed Pad package.
The operating voltage range is 3.5V to 40V.
The speed is 32MHz.
