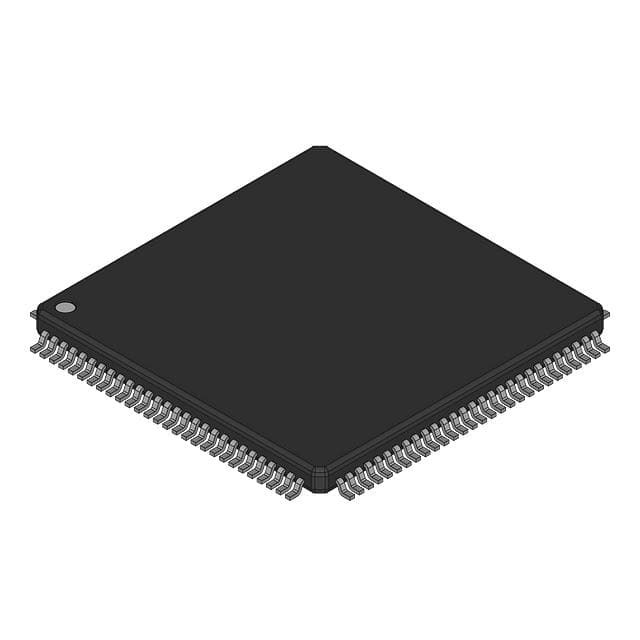

S912XET256J2CAL The NXP Semiconductors S912XET256J2CAL is a 16-bit microcontroller featuring a S12X core and 256KB of FLASH program memory. It operates within a voltage range of 1.72V to 5.5V.
Mfr Part #:

S912XET256J2CAL

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors S912XET256J2CAL is a 16-bit microcontroller featuring a S12X core and 256KB of FLASH program memory. It operates within a voltage range of 1.72V to 5.5V.
✓ Total Stock: 135,854 pcs
$ Price Range: $6.40

S912XET256J2CAL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
135,648 pcs
On Request
135648 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
206 pcs
On Request
206 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S912XET256J2CAL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

S912XET256J2CAL Description

Short technical summary and product information.

This NXP Semiconductors S912XET256J2CAL is a 16-bit microcontroller based on the S12X core. It offers 256KB of FLASH program memory and 16KB of RAM, with an additional 4KB of EEPROM.



The device operates at a speed of 50MHz and supports a wide operating voltage range from 1.72V to 5.5V. It includes various peripherals such as LVD, POR, PWM, and WDT, and features 16-bit Analog-to-Digital converters. Connectivity options include CANbus, EBI/EMI, I²C, IrDA, SCI, and SPI, with 91 I/O lines available.



The microcontroller is designed for surface mounting and comes in a 112-LQFP package. It operates within a temperature range of -40°C to 85°C (TA). The RoHS status is listed as RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

S912XET256J2CAL Quick Information

Product Type: Microcontroller
Canonical Name: S912XET256J2CAL Microcontroller
Subcategory: Embedded

S912XET256J2CAL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S912XET256J2CAL Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

S912XET256J2CAL Features

  • 16-bit HCS12X core microcontroller.
  • 256KB FLASH program memory.
  • 16KB RAM and 4KB EEPROM.
  • Operates at 50MHz.
  • Surface mount 112-LQFP package.

S912XET256J2CAL Applications

  • Suitable for industrial control applications.
  • Used in consumer electronics devices.
  • Applicable in communication systems.
  • Can be used in automotive systems.

S912XET256J2CAL FAQs

4 frequently asked questions generated from this part’s specifications.
What is the program memory size of the S912XET256J2CAL?

The program memory size is 256KB (256K x 8).

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 85°C (TA).

What type of package does the S912XET256J2CAL come in?

It comes in a 112-LQFP package.

Is the S912XET256J2CAL RoHS compliant?

The RoHS status is RoHS3 Compliant.
