| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,010 pcs
|
2010 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| EEPROM Size | |
| Mounting Type | |
| Oscillator Type | |
| Package / Case | |
| Peripherals | |
| RAM Size | |
| Voltage Range |

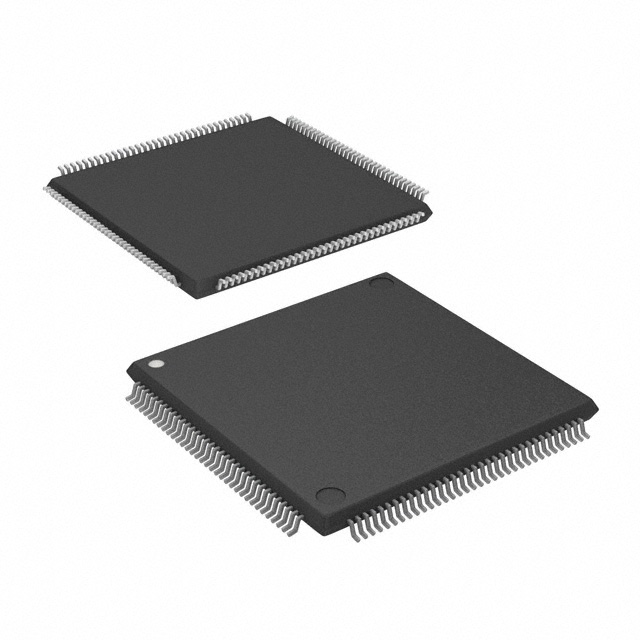

The S912XEQ384F1CAG is a high-performance 16-bit microcontroller from NXP Semiconductors, built around the HCS12X core processor. It is designed for demanding embedded applications, capable of operating at speeds up to 50MHz. This MCU provides 384KB of FLASH program memory and 24KB of RAM, along with 4K x 8 EEPROM for non-volatile data storage.
With a wide operating voltage range of 1.72V to 5.5V, the S912XEQ384F1CAG offers flexibility in power supply configurations. It features 119 I/O pins for extensive connectivity and supports various communication protocols including CANbus, I2C, and SPI. Integrated peripherals include a Low Voltage Detector, Power-On Reset, PWM, and Watchdog Timer. A 24-channel, 12-bit Analog-to-Digital Converter is also included for data conversion tasks.
The microcontroller is housed in a 144-pin LQFP package, suitable for surface mount applications. Its robust feature set makes it ideal for automotive systems, industrial automation, consumer electronics, medical devices, and telecommunications.
NXP Semiconductors provides development tools such as the CodeWarrior Development Studio, evaluation boards, and debugging tools to support the design process.
The S912XEQ384F1CAG operates at up to 50MHz.
It has 384KB of Flash program memory (384K x 8).
The operating voltage range is 1.72V to 5.5V.
It is available in a 144-pin LQFP surface-mount package.
It supports CANbus, EBI/EMI, I2C, IrDA, SCI, and SPI.
Yes, it includes a 24-channel 12-bit ADC.
