| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,544 pcs
|
5544 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

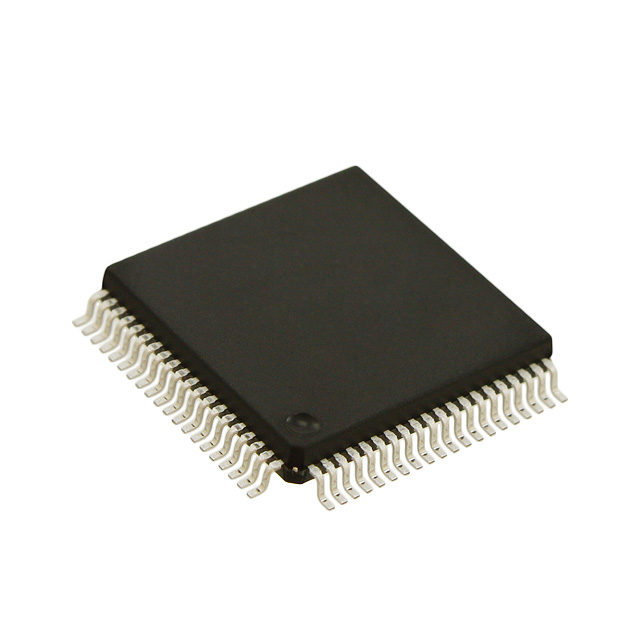

This NXP Semiconductors S912XEA128J2MAA is a high-performance 16-bit microcontroller based on the HCS12X core, capable of operating at speeds up to 50MHz. It is designed for a wide range of embedded applications and features 128KB of FLASH program memory and 12KB of RAM, providing ample storage for complex code and data handling. The device supports a wide supply voltage range from 1.72V to 5.5V, ensuring compatibility with various power sources.
Key electrical specifications include 59 I/O pins, 8-channel 12-bit Analog-to-Digital converter, and integrated peripherals such as Low Voltage Detector (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options include CANbus, EBI/EMI, I2C, IrDA, SCI, and SPI.
The microcontroller is housed in an 80-QFP (14x14) package and is suitable for surface mount applications. It operates within a temperature range of -40°C to 125°C (TA). The device is RoHS3 Compliant and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is from 1.72V to 5.5V.
It comes in an 80-QFP (14x14 mm) surface mount package.
-40°C to 125°C.
RoHS3 compliance status is unverified.
