| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,029 pcs
|
4029 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,020 pcs
|
4020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

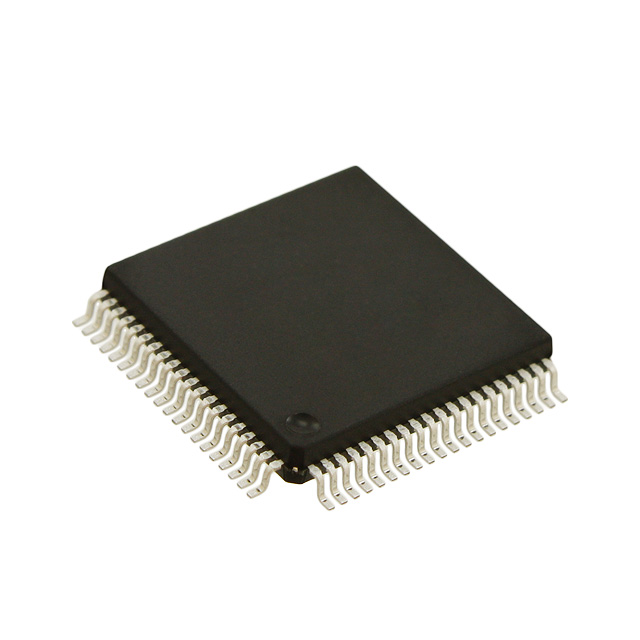

The S912XDP512J1CAAR from NXP Semiconductors is a high-performance 16-bit microcontroller based on the HCS12X core processor. It is designed for a wide array of embedded applications, providing robust performance and extensive connectivity options.
Key specifications include 512KB of FLASH program memory, 32KB of RAM, and 4K x 8 EEPROM. The microcontroller operates at a maximum clock speed of 80MHz and supports a wide supply voltage range of 2.35V to 5.5V. It features 59 I/O pins and integrated peripherals such as Low Voltage Detector (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT).
Connectivity is facilitated through support for CANbus, I2C, SCI, and SPI protocols. The device includes 8x10-bit and 16x10-bit A/D converters for analog signal processing. It requires an external oscillator for precise clock generation.
The S912XDP512J1CAAR is available in a surface mount package, specifically an 80-QFP (14x14), suitable for compact designs. It is supplied in Tape & Reel (TR) packaging, ideal for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.35V to 5.5V.
The S912XDP512J1CAAR is available in an 80-QFP package.
The operating temperature range is -40°C to 85°C (TA).
This component is RoHS3 Compliant.
The Moisture Sensitivity Level is Level 3 (168 Hours).
The REACH status is Unaffected.
The program memory size is 512KB.
