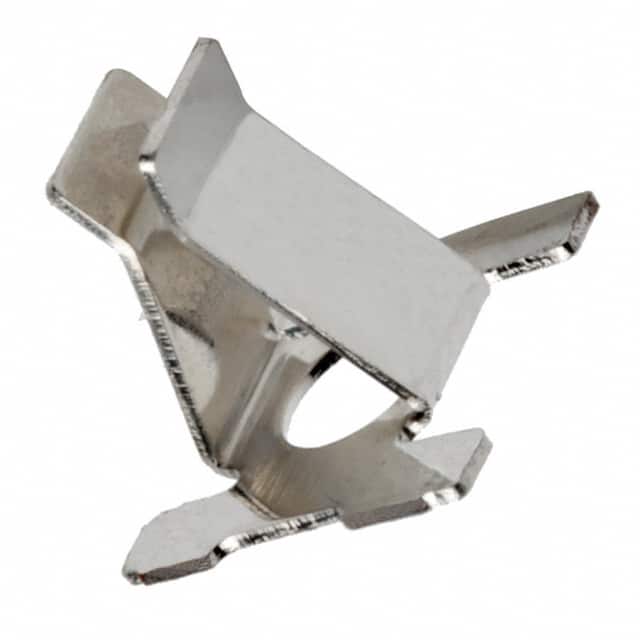

The Harwin S9101-46R is a surface mount pin receptacle designed for accepting round pins from 1.10mm to 1.80mm diameter and square pins from 1.10mm to 1.40mm. It features a clip tail type and is constructed from phosphor bronze with a tin finish over a nickel underlayer.
This receptacle is rated for a maximum current of 9A when used with a 1.10mm pin. Contact resistance is typically 2.67mΩ before and after 50 cycles. Insertion force ranges from 2.8N maximum with a 1.10mm pin to 6.0N maximum with a 1.80mm pin, with minimum withdrawal forces of 0.3N and 0.5N respectively. Durability is rated for 100 operations.
Operating temperature range is -40°C to +105°C. The component is supplied in tape and reel packaging with 800 pieces per reel, meeting EIA-481-2 standards. The reel includes a minimum 400mm leader and 160mm trailer.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.27 | $0.27 |
| 10+ | $0.23 | $0.23 |
| 25+ | $0.22 | $0.22 |
| 50+ | $0.21 | $0.21 |
| 100+ | $0.20 | $0.20 |
| 250+ | $0.19 | $0.19 |
| 800+ | $0.17 | $0.17 |
| 1,600+ | $0.16 | $0.16 |
| 2,400+ | $0.16 | $0.16 |
| 4,000+ | $0.15 | $0.15 |
| 5,600+ | $0.15 | $0.15 |
| 8,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9A maximum with a 1.10mm pin.
Surface mount (SMD).
Round pins from 1.10mm to 1.80mm (0.043" to 0.071").
Maximum 2.8N with 1.10mm pin, 6.0N with 1.80mm pin.
-40°C to +105°C.
100 operations.
Tape and reel, 800 pieces per reel.
