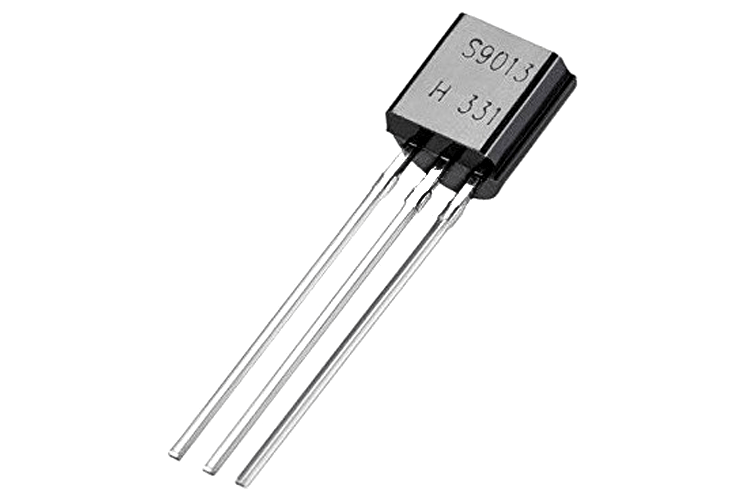

S9013 The S9013 is a medium-power NPN transistor from CJ, suitable for general purpose switching and amplification. It offers a 25V collector-emitter breakdown voltage and 500mA collector current.
Mfr Part #:

S9013

Available from 2 distributors
Mfr Name: CJ
CJ
The S9013 is a medium-power NPN transistor from CJ, suitable for general purpose switching and amplification. It offers a 25V collector-emitter breakdown voltage and 500mA collector current.
✓ Total Stock: 63,621 pcs

S9013 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
62,621 pcs
On Request
62621 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S9013 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
View Similar Products (0)

S9013 Description

Short technical summary and product information.

The S9013 is a medium-power NPN transistor designed for general-purpose switching and amplification applications. It features a collector-emitter breakdown voltage of 25V and a significant collector current capacity of 500mA.



With a transition frequency of 140MHz, the S9013 is well-suited for high-frequency applications. Its current gain ranges from a minimum of 40 to a maximum of 300. The transistor is housed in a TO-92 package, with a power dissipation rating of 650mW.



This transistor can be used in applications such as high-frequency amplifiers, switching converters, and high-current drivers. Its design allows for effective current control between the collector and emitter via the base current.

S9013 Quick Information

Product Type: NPN Transistor
Series: S9013
Canonical Name: S9013 NPN Transistor
Subcategory: Bipolar (BJT) - Single

S9013 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S9013 Features

  • 25V collector-emitter breakdown voltage.
  • 500mA maximum collector current.
  • 140MHz transition frequency.
  • TO-92 package with 650mW power dissipation.
  • Current gain ranges from 40 to 300.

S9013 Applications

  • General purpose switching and amplification.
  • Low-power driver circuits.
  • Signal processing applications.
  • Audio amplifier stages.

S9013 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the collector-emitter breakdown voltage?

25V.

What is the maximum collector current?

500mA.

What is the DC current gain range?

40 to 300.

What is the transition frequency?

140MHz.

What is the power dissipation?

650mW.

What package is the S9013 available in?

TO-92.
