| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

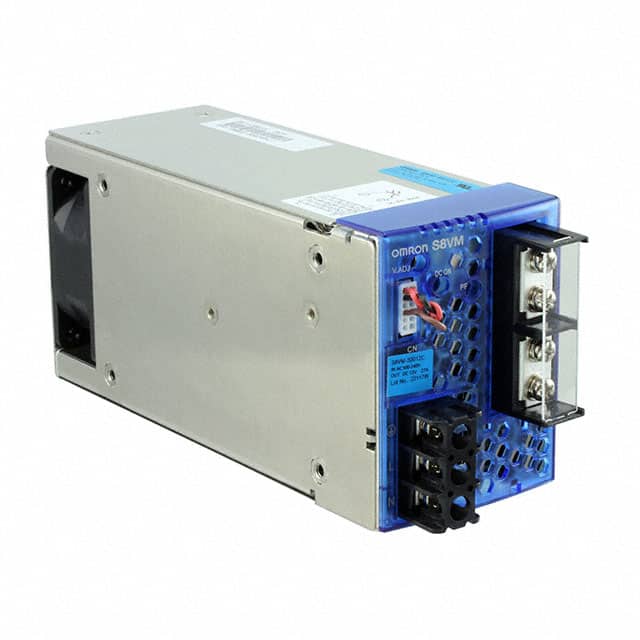

The Omron S8VM-30012C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 300W with a single output voltage.
Key electrical specifications include an output current of 27A and an efficiency of 78%. The unit features adjustable output and universal input capabilities, making it versatile for various power needs. It offers isolation voltage of 3 kV.
Mechanically, this converter is designed for chassis mounting and has dimensions of 188.0mm x 83.5mm x 62.5mm. The operating temperature range is -10°C to 70°C, with derating applied at higher temperatures.
Compliance includes CE, cULus, cURus, and VDE certifications. It is also RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
The output voltage is 12V DC with a maximum current of 27A.
The power rating is 300W.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount installation.
It is approved to CE, cULus, cURus, and VDE standards.
The efficiency is 78%.
