| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

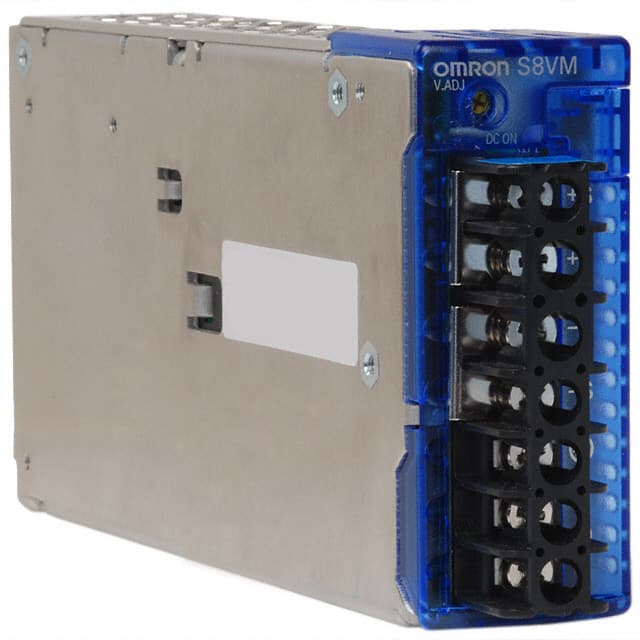

The Omron S8VM-10024A is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 100W of power with a 4.5A output current and features adjustable output and universal input capabilities.
This converter offers a 3kV isolation voltage and operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 164.5mm in length, 35.0mm in width, and 84.5mm in height. The chassis mount design facilitates easy integration into various systems.
Key specifications include 82% efficiency and compliance with CE, cULus, cURus, and VDE approval agencies. The product is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The Omron S8VM-10024A has a power output of 100W.
The output current is 4.5 A.
The isolation voltage is 3 kV.
It uses chassis mount.
The operating temperature range is -10°C to 70°C (With Derating).
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
