| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

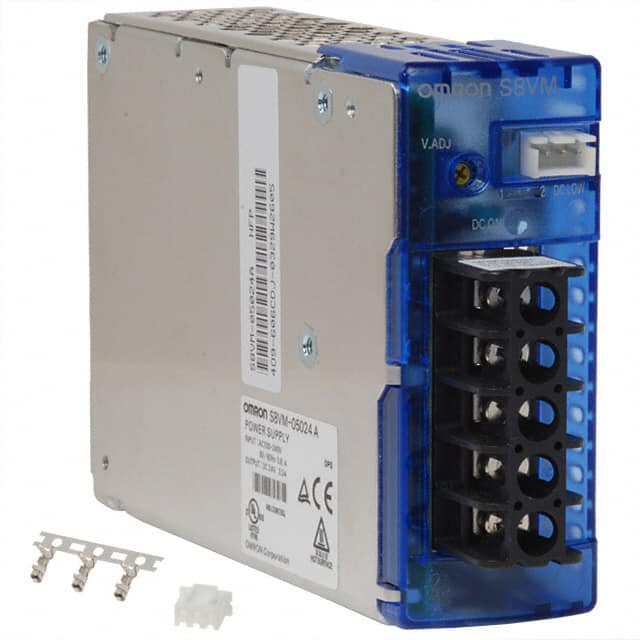

The Omron S8VM-05024A is an enclosed AC/DC converter designed for industrial and commercial applications. It provides a power output of 50W with an output current of 2.2A and an efficiency rating of 80%.
This converter features adjustable output and a universal input, making it versatile for various power supply needs. It is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. The unit has undergone rigorous testing and holds approvals from CE, cULus, cURus, and VDE.
Key specifications include a single output, an insulation voltage of 3 kV, and dimensions of 124.5mm x 33.5mm x 84.5mm. The S8VM-05024A is suitable for ITE (Commercial) applications and meets RoHS3 compliance standards.
Enclosed.
-10°C to 70°C with derating.
50W.
2.2A.
80%.
3kV.
Chassis Mount.
