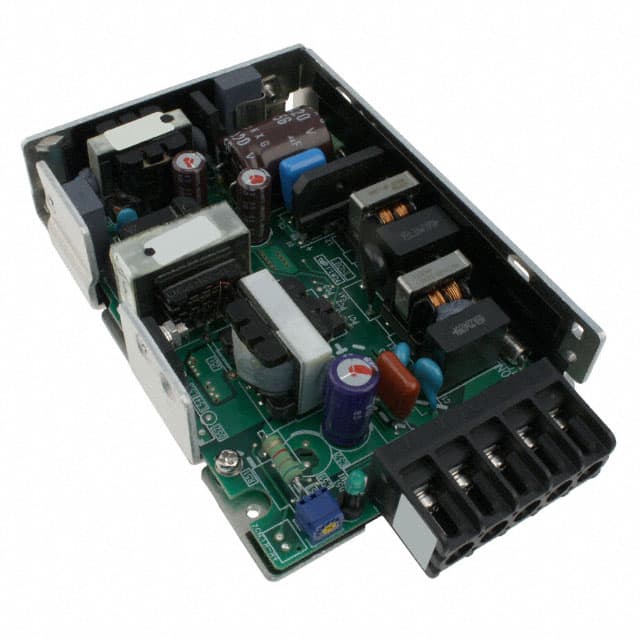

The Omron S8VM-05005 is an open frame AC/DC converter designed for chassis mounting. This unit delivers 50W of power with a 10A output current and features adjustable output capabilities along with a universal input voltage range.
Key electrical specifications include an efficiency of 80% and an isolation voltage of 3 kV. The converter operates within a temperature range of -10°C to 70°C, with derating applied at higher temperatures. Its dimensions are 120.5mm in length, 27.0mm in width, and 82.5mm in height.
Designed for ITE (Commercial) applications, the S8VM-05005 is approved by CE, cULus, cURus, and VDE. It features a single output and is RoHS3 compliant, with MSL 1 and REACH unaffected status.
The operating temperature range is -10°C to 70°C with derating.
The output current is 10 A.
The power rating is 50W.
The dimensions are 120.5mm x 27.0mm x 82.5mm (4.74" x 1.06" x 3.25").
Yes, it features adjustable output and universal input.
It is approved by CE, cULus, cURus, and VDE.
