| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Voltage | |
| Width |

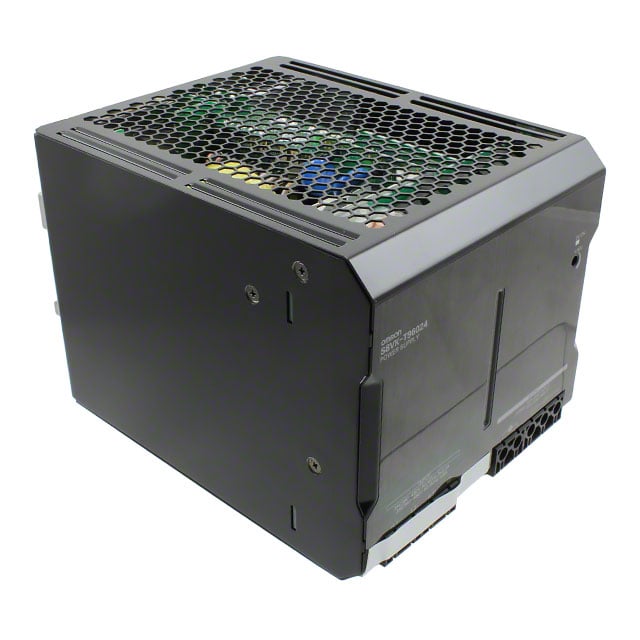

The Omron S8VK-T96024 is a 960-watt DIN rail mountable AC/DC power supply from the S8VK-T series. It delivers a nominal 24 VDC output at 40 A, with a boost capability up to 48 A. The unit accepts a wide 3-phase AC input range of 320 to 576 VAC (380 to 480 VAC nominal) and also supports DC input from 450 to 600 VDC.
Key electrical specifications include a typical efficiency of 93% at 400 VAC input, power factor of 0.95 typ., and low ripple and noise of 50 mV p-p max. The output voltage is adjustable from 24 to 29.5 VDC. Protection features include overload protection with automatic reset and overvoltage protection (130% or higher of rated output, power shut off).
The power supply is designed for commercial ITE applications and is approved to CE, TUV, and UL standards. It measures 180.0 x 95.0 x 125.0 mm and features an IP20 rating, adjustable output, and load sharing capability. Operating temperature range is -40°C to 70°C with derating.
| Qty | Low | High |
|---|---|---|
| 1+ | $572.98 | $572.98 |
| 10+ | $556.32 | $556.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 24 VDC, adjustable from 24 to 29.5 VDC.
The operating temperature range is -40°C to 70°C with derating.
RoHS3 compliance is indicated in the existing database but is unverified from the datasheet.
It accepts 3-phase AC input from 320 to 576 VAC (nominal 380-480 VAC) and DC input from 450 to 600 VDC.
Typical efficiency is 93% at 3-phase 400 VAC input.
Overload protection with automatic reset and overvoltage protection (130% or higher of rated output, power shut off).
