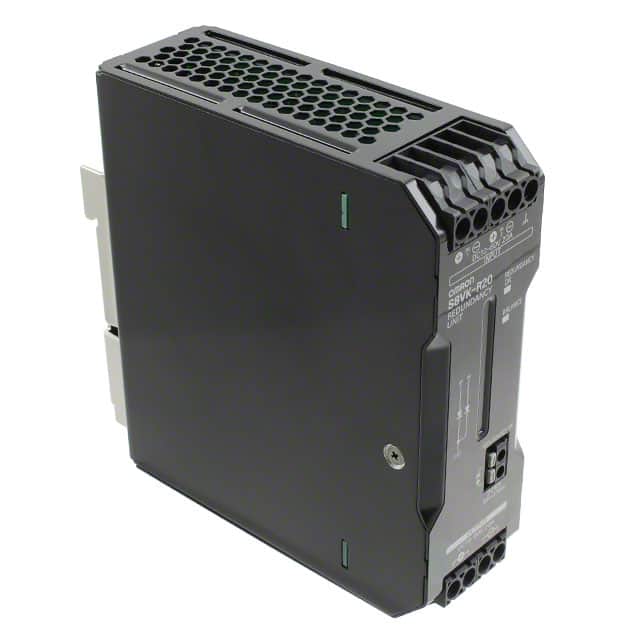

The Omron S8VK-R20 is a redundancy module designed to enhance the reliability of power supply systems. It is compatible with the Omron S8VK series.
This module supports a wide input voltage range, from 10 to 60 VDC, and provides a continuous output current of 20 A. It also features a power boost capability of up to 24 A. The operating temperature range is -40 to 70 °C, making it suitable for various industrial environments.
Key features include a REDUNDANCY OK indicator and contact for failure detection, as well as a BALANCE indicator to monitor power supply voltage differences. The module has a low voltage drop from input to output, minimizing power loss. Safety standards include UL, CSA, and EN certifications.
Designed for easy setup, the S8VK-R20 contributes to building highly reliable systems, offering a compact and cost-effective solution for back-up applications.
The input voltage range is 10 to 60 VDC.
The continuous output current is 20 A.
The operating temperature range is -40 to 70 °C.
Yes, it has a REDUNDANCY OK signal output for failure detection of power supplies.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
