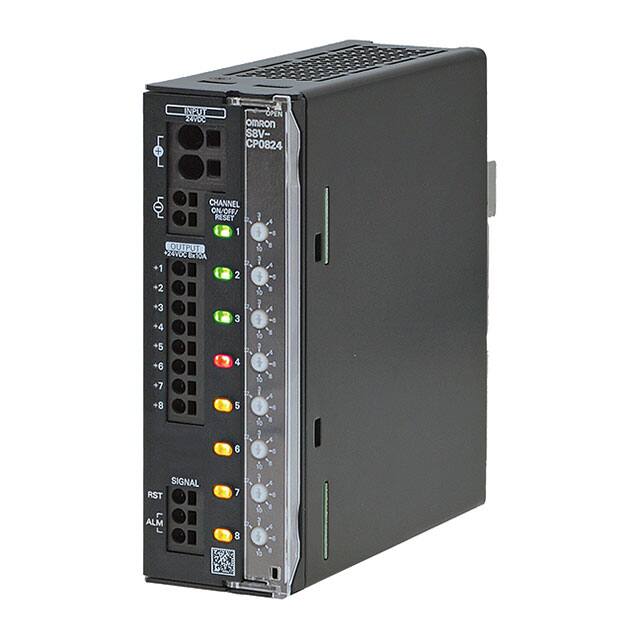

The Omron S8V-CP0824 is a robust DC electronic circuit protector featuring 8 outputs, designed to safeguard DC circuits from overcurrent and short circuit events. It operates with a rated input voltage of 24 VDC, with an allowable input range of 20 to 30 VDC. Each of the 8 outputs can handle a maximum rated current of 10 A, and the device has a typical internal voltage drop of 200 mV.
This circuit protector offers simplified safety design and saves space with its multi-channel capability. It incorporates a push-in plus terminal block for easy wiring and push buttons with indicators to display the status of each output at a glance. The device also features switches to set the rated output current appropriately for each load. Sequential start-up of outputs is implemented to prevent start-up troubles, with an initialization time of 250 ms typ. and a start-up delay time ranging from 50 ms to 5 s.
The S8V-CP0824 has a typical power consumption of 15 W when all outputs are connected (at 10 A x 7 CH) and 1.1 W when all outputs are tripped. The allowable input current is a maximum of 70 A. This accessory type is specifically designed for use with the S8V-CP Series Power Supplies, providing reliable and efficient circuit protection in various industrial and automation applications.
The rated input voltage is 24 VDC, with an allowable range of 20 to 30 VDC.
It has 8 outputs.
The maximum rated output current per output is 10 A.
When all outputs are connected, typical power consumption is 15 W. When all outputs are tripped, typical power consumption is 1.1 W.
The initialization time is 250 ms typical. After that, outputs start sequentially with a delay of 50 ms to 5 s per output, automatically determined by the load.
The typical internal voltage drop is 200 mV. Consider this voltage drop at the output when designing the system.
The maximum output leakage current is 10 mA.
