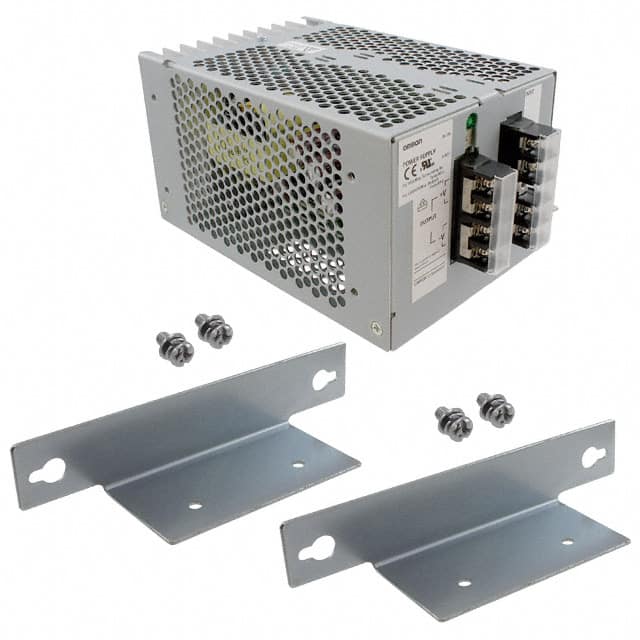

The Omron S8JXG30024C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 300W of power with a single output and a current rating of 14A.
This converter operates with a wide input voltage range of 85 to 264 VAC and boasts an efficiency of 86%. Key features include load sharing and universal input capabilities. The unit is designed for chassis mounting, making it suitable for integration into various systems.
With dimensions of 204.8mm x 110.0mm x 96.0mm, the S8JXG30024C operates within a temperature range of -10°C to 60°C. It is RoHS3 compliant and has an MSL of 1.
The Omron S8JXG30024C has a power output of 300W.
The output current rating for the S8JXG30024C is 14 A.
The input voltage range is 85 ~ 264 VAC.
The S8JXG30024C uses chassis mount.
The operating temperature range is -10°C to 60°C.
The RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
