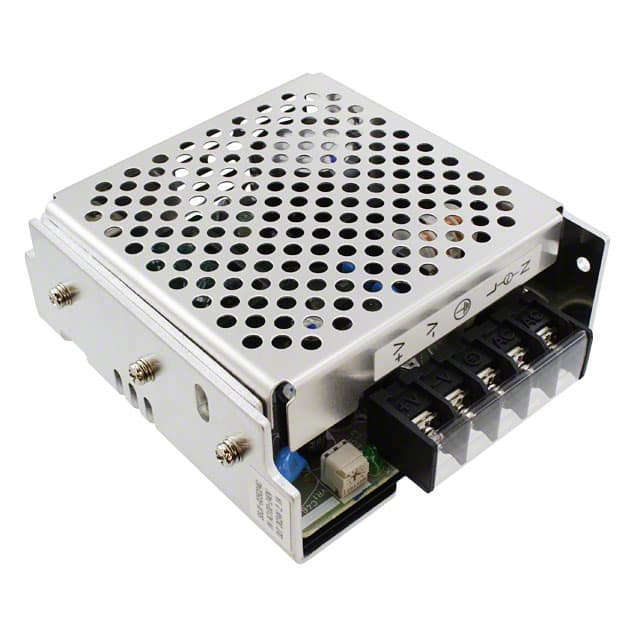

S8JXG05024C The Omron S8JXG05024C is a 50W AC/DC converter with a universal input voltage range of 85-264 VAC. It provides a 2.1A output current and features load sharing and universal input capabilities.
Mfr Part #:

S8JXG05024C

Mfr Name: Omron
Omron
The Omron S8JXG05024C is a 50W AC/DC converter with a universal input voltage range of 85-264 VAC. It provides a 2.1A output current and features load sharing and universal input capabilities.
Stock on Request

S8JXG05024C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Type
Voltage
Width
View Similar Products (0)

S8JXG05024C Description

Short technical summary and product information.

The Omron S8JXG05024C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a wide input voltage range of 85 to 264 VAC and delivers a 50W output power with a 2.1A current.



Key features include load sharing and universal input, making it versatile for various power supply needs. The converter is designed for chassis mounting and operates within a temperature range of -10°C to 60°C. Its efficiency is rated at 83%.



This AC/DC converter is approved by CE and offers a single output. The dimensions are 124.5mm in length, 40.0mm in width, and 97.0mm in height.

S8JXG05024C Quick Information

Product Type: AC DC Converter
Series: S8JXG
Canonical Name: Omron S8JXG05024C AC/DC Converter
Subcategory: AC DC Converters

S8JXG05024C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S8JXG05024C Features

  • 50W enclosed AC/DC converter.
  • Universal input voltage range 85-264 VAC.
  • 2.1A output current.
  • Chassis mount type.
  • Operates from -10°C to 60°C.

S8JXG05024C Applications

  • Used in industrial control panel power distribution.
  • Ideal for commercial ITE (Information Technology Equipment) systems.
  • Suitable for factory automation equipment.
  • Applied in test and measurement instrumentation.

S8JXG05024C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the Omron S8JXG05024C?

85 to 264 VAC.

What is the operating temperature range?

-10°C to 60°C.

What is the efficiency of this converter?

83%.

What is the power rating?

50W.

How many outputs does it have?

1.

What is the output current?

2.1 A.

What is the mounting type?

Chassis Mount.
