Mfr Part #:

S8JXG03512C

Mfr Name: Omron

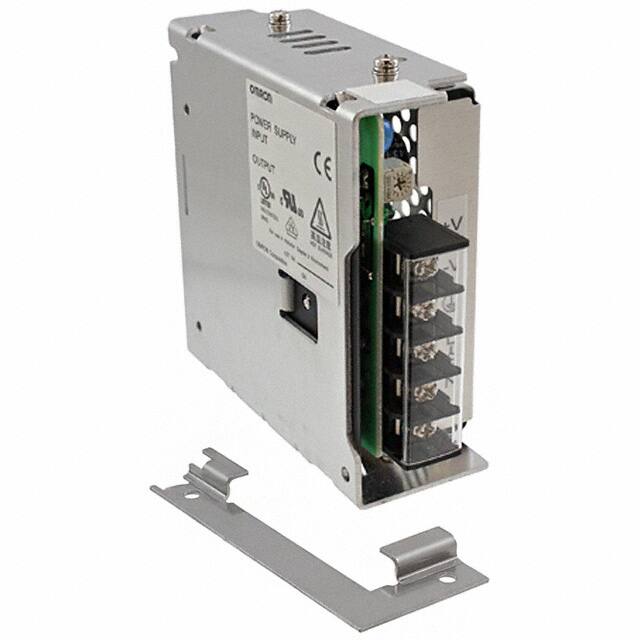

The Omron S8JXG03512C is an enclosed AC/DC converter providing 12V at 3A for a total of 35W. It features universal input and chassis mounting.

Stock on Request

S8JXG03512C Description

Short technical summary and product information.

The Omron S8JXG03512C is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It operates with an input voltage range of 85 to 264 VAC and delivers a stable 12V output at 3A, providing a total power of 35W. The converter boasts an efficiency of 73% and features like load sharing and universal input.

Designed for convenient integration, this unit utilizes a chassis mount type. Its dimensions are 114.5mm in length, 39.5mm in width, and 96.0mm in height. The operating temperature range is from -10°C to 60°C. It has a single output and is approved by CE.

S8JXG03512C Quick Information

Product Type: AC DC Converter

Series: S8JXG

Canonical Name: Omron S8JXG03512C AC/DC Converter

S8JXG03512C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S8JXG03512C Features

Enclosed AC/DC converter with 35W power.
Provides 12V output at 3A current.
Operates from 85-264 VAC input.
Features load sharing and universal input.
Chassis mount type for easy integration.

S8JXG03512C Applications

Delivers 35W at 12V for commercial ITE.
Supports load-sharing between parallel power supplies.
Operates from 85 to 264 VAC input.
Mounts on chassis within commercial equipment enclosures.

S8JXG03512C FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the Omron S8JXG03512C?

85 to 264 VAC.

What is the output voltage and current?

12V at 3A (35W).

What is the efficiency of the converter?

73%.

What is the operating temperature range?

-10°C to 60°C.

What type of packaging and mounting does the converter use?

Enclosed, chassis mount.

What are the dimensions of the converter?

114.5mm x 39.5mm x 96.0mm (4.51" x 1.56" x 3.78").

What approvals does the Omron S8JXG03512C have?

CE approval for ITE (commercial) applications.

Category	AC DC Converters
Manufacturer Name	Omron
Applications	ITE (Commercial)
Approval Agency	CE
Current	3 A
Efficiency	73%
Features	Load Sharing, Universal Input
Height	96.0mm (3.78")
Length	114.5mm (4.51")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-10°C ~ 60°C
Output Voltage	12V
Power (Watts)	35W
Type	Enclosed
Voltage	85 ~ 264 VAC
Width	39.5mm (1.56")
