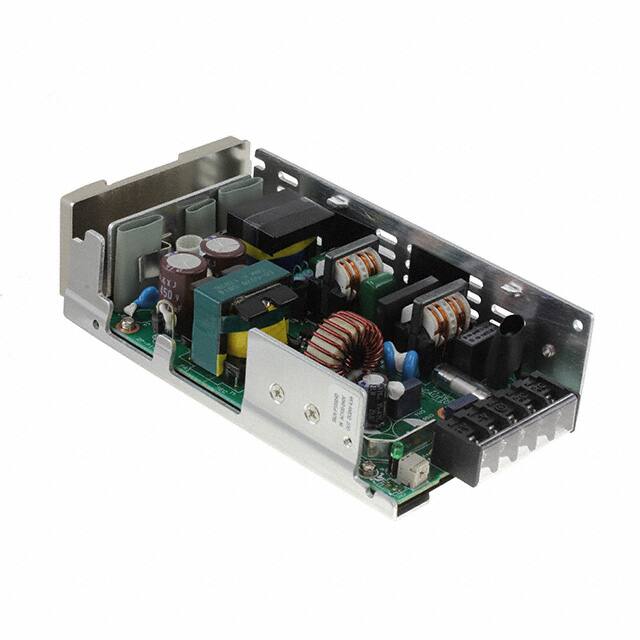

The Omron S8JX-P10024D is an open-frame AC/DC power supply designed for chassis mounting. It delivers 100W of power with a 24VDC output voltage and accepts a wide input voltage range of 85 to 264 VAC.
Key electrical specifications include an output current of 4.5A and an efficiency of 81%. This model features load sharing and universal input, making it versatile for various applications. The operating temperature range is -10°C to 70°C.
With dimensions of 160.5mm x 42.0mm x 92.0mm, this converter is suitable for integration into systems requiring compact power solutions. It holds approvals from CE, cULus, cURus, and VDE, indicating compliance with international safety standards. The RoHS3 status is compliant, and it is rated MSL 1 Unlimited and REACH Unaffected.
The output voltage is 24VDC.
The input voltage range is 85 to 264 VAC.
The maximum output current is 4.5A.
The power rating is 100W.
The operating temperature range is -10°C to 70°C.
It uses chassis mount.
