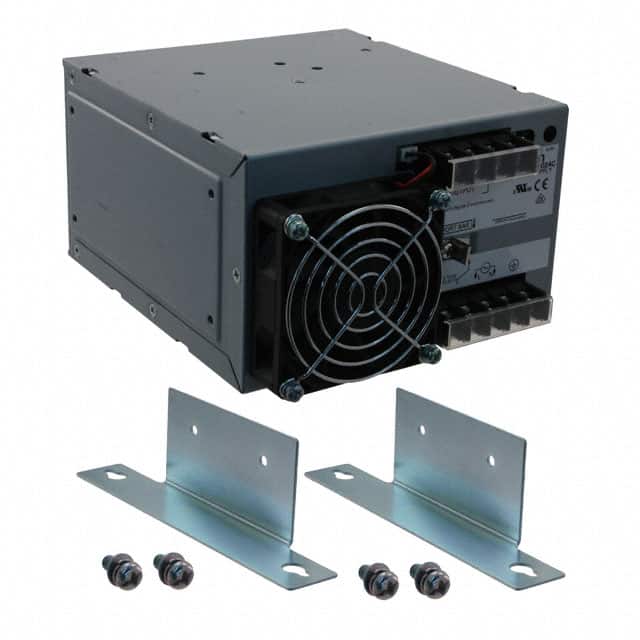

The Omron S8JX-G60024C is an enclosed AC/DC power supply designed for chassis mounting. It delivers a robust 600W of power with a stable 24V DC output, capable of handling up to 27A.
This converter operates with a universal input voltage range of 85 to 264 VAC, making it suitable for global applications. It boasts an efficiency rating of 80% and features like load sharing and universal input, enhancing its versatility.
The operating temperature range is from -10°C to 60°C. Its dimensions are 184.2mm in length, 150.0mm in width, and 92.0mm in height. The S8JX series offers multiple mounting options and built-in overload and overvoltage protection.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. Approvals are CE marked.
The Omron S8JX-G60024C provides a 24V output current of 27A.
The power rating for this AC/DC converter is 600W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -10°C to 60°C.
The dimensions are 184.2mm in length, 150.0mm in width, and 92.0mm in height.
Yes, the RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
