| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

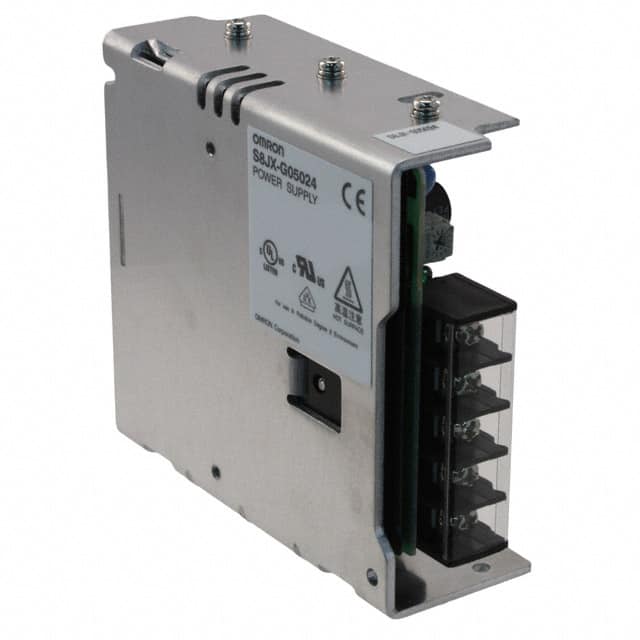

The Omron S8JX-G05024 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a stable 24V DC output with a maximum current of 2.1A, delivering a total power of 50W. The unit operates with a wide input voltage range of 85 to 264 VAC, ensuring compatibility in various regions.
Key electrical specifications include an efficiency of 83% and a single output. The operating temperature range is from -10°C to 60°C. This converter is designed for chassis mounting and features load sharing and universal input capabilities, making it a versatile choice for power supply solutions.
Compliance includes CE certification. The dimensions are 124.5mm x 40.0mm x 97.0mm (4.90" x 1.57" x 3.82").
The output voltage is 24V.
The maximum output current is 2.1A.
The power rating is 50W.
The input voltage range is 85-264 VAC.
The dimensions are 124.5mm x 40.0mm x 97.0mm.
The operating temperature range is -10°C to 60°C.
