| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

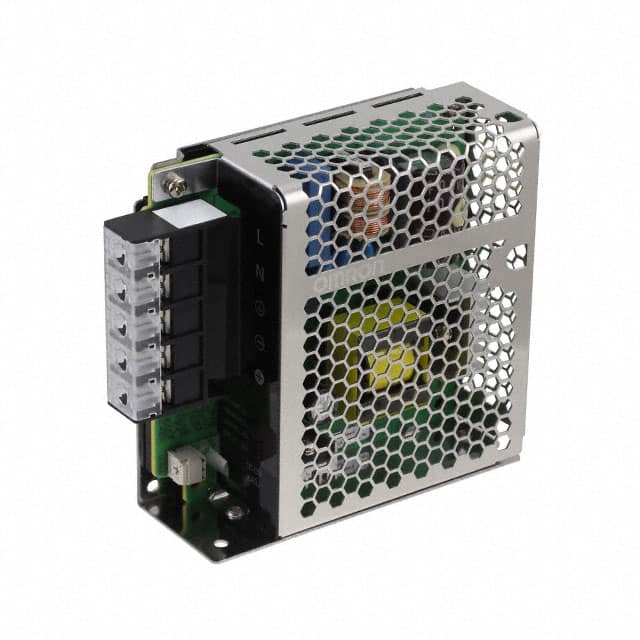

The Omron S8FS-G05024C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a reliable 50W of power with a 24V output voltage and a current rating of 2.2A. This unit boasts an efficiency of 89% and operates within an ambient temperature range of -20°C to 70°C with derating.
Key features include adjustable output, DC input capability, and universal input voltage range. The converter is designed for chassis mounting, offering a compact solution with dimensions of 99.0mm x 97.0mm x 36.0mm. It also provides 3kV of isolation voltage, ensuring safety and reliability in various systems.
The S8FS-G series power supplies are known for their superior basic performance, ensuring reliability in demanding environments. They offer a wide range of global standards certification, including CE, cURus, TUV, and UL, making them suitable for international use. The design also incorporates usability features such as terminal block covers to prevent screw dropout and front covers to prevent foreign matter ingress.
The Omron S8FS-G05024C has a power output of 50W.
The output voltage of the S8FS-G05024C is 24V.
The maximum output current for the S8FS-G05024C is 2.2A.
The operating temperature range is -20°C to 70°C, with derating.
The S8FS-G05024C supports chassis mounting.
The S8FS-G series has certifications including UL 508 (Listing), CSA C22.2, Overvoltage Category III (EN 50178), EMI Class B (EN 61204-3), and EN/IEC 61558-2-16.
