| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

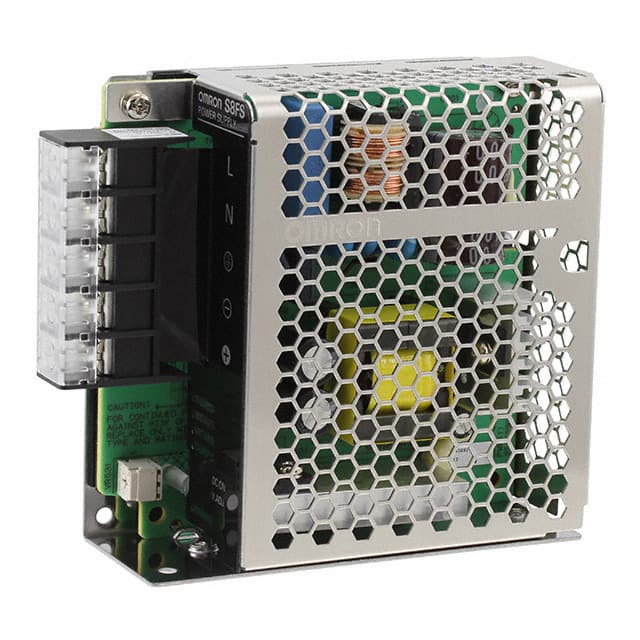

The Omron S8FS-G05012C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a stable 12V output at 50W power rating with an efficiency of 86%.
Key electrical features include adjustable output, DC input capability, and universal input, making it versatile for various power system designs. The unit is rated for an isolation voltage of 3 kV and operates reliably in ambient temperatures from -20°C to 70°C, with derating applied.
Mechanically, this converter features a chassis mount design with dimensions of 99.0mm in length, 97.0mm in width, and 36.0mm in height. It has undergone approvals from CE, cURus, TUV, and UL, ensuring compliance with international standards.
This model is part of the S8FS-G series, known for its superior basic performance, reliability, and a wide range of standards certification.
12V DC
It uses a chassis mount configuration within an enclosed housing.
-20°C to 70°C with derating
50 watts
Yes, it accepts 100 to 240 VAC input.
3 kV
