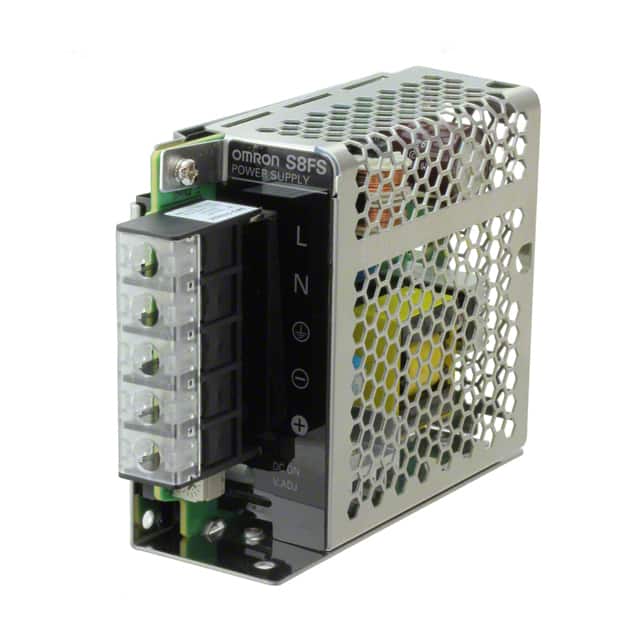

The Omron S8FS-G03005C is an enclosed AC/DC converter from the S8FS-G series, delivering 30W of power with a single 5V output at 6A. This unit is designed for reliable performance with a universal input voltage range of 100 to 240 VAC and an efficiency of 81%.
Key features include adjustable output, DC input capability, and universal input. The converter operates within an ambient temperature range of -20°C to 70°C with derating. Its dimensions are 99.0mm in length, 82.0mm in width, and 35.0mm in height, making it suitable for chassis mounting.
This power supply is certified by CE, cURus, TUV, and UL, meeting global standards including Overvoltage Category III (EN 50178) and EMI Class B (EN 61204-3). It is suitable for ITE (Commercial) applications and offers an isolation voltage of 3 kV.
The S8FS-G series is known for superior basic performance, ensuring reliability in various conditions, including operation at altitudes up to 3,000 meters. The design incorporates features like a terminal block cover to prevent screw dropout and a front cover for ingress protection.
The Omron S8FS-G03005C provides a 5V output at 6A.
The power rating for the S8FS-G03005C is 30W.
The operating temperature range is -20°C to 70°C, with derating.
This unit is designed for chassis mounting.
The S8FS-G03005C is certified by CE, cURus, TUV, and UL.
The efficiency of the S8FS-G03005C is 81%.
