| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| SVHC Present | |
| Type | |
| Voltage |

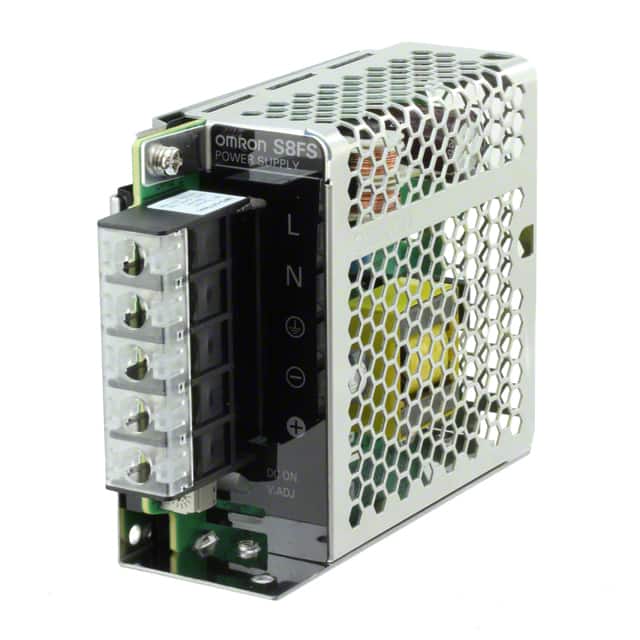

The Omron S8FS-G01505C is a 15W AC/DC converter from the S8FS-G series, designed for reliable performance. It features a 5V output voltage and a maximum current of 3A. This enclosed unit is suitable for chassis mounting and operates within an ambient temperature range of -20°C to 70°C with derating.
Key specifications include an efficiency of 80% and approval from agencies such as CE, cURus, TUV, and UL. The converter supports universal input and has features like adjustable output and DC input capability. Its dimensions are 99.0mm in length, 82.0mm in width, and 35.0mm in height.
The S8FS-G series is known for its superior basic performance, ensuring reliability in various applications. It is certified for global standards, including North American and European safety certifications, and meets Class B EMI standards. The design includes features for greater usability, such as a terminal block cover to prevent screw dropout and a front cover to prevent foreign matter ingress.
The output voltage is 5 V.
The power rating is 15W.
The operating temperature range is -20°C to 70°C (With Derating).
It uses chassis mount.
Features include adjustable output, DC input capable, and universal input.
It is certified for North America (UL 508, CSA C22.2) and Europe (EN 50178), and meets EMI Class B (EN 61204-3).
