| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

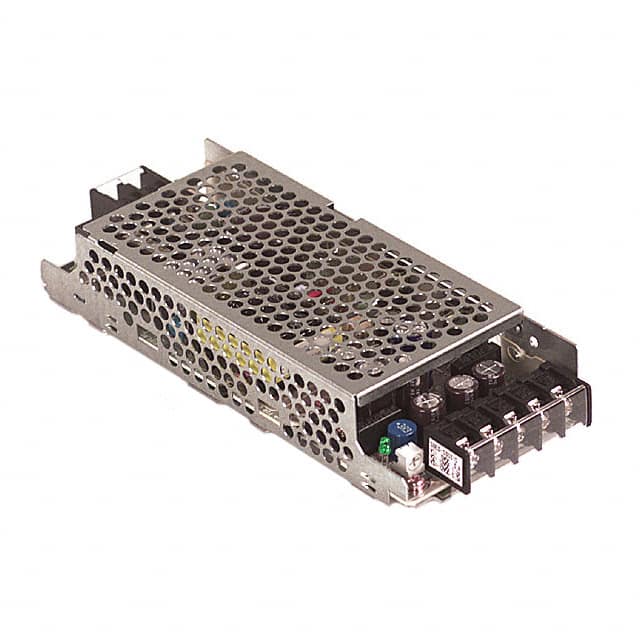

The Omron S8E3-03031D is an enclosed AC/DC converter with a power rating of 30W. It provides three outputs: 5V at 3A, 12V at 1.2A, and -12V at 300mA. This converter is suitable for ITE (Commercial) applications and features adjustable output settings.
Designed for reliable operation, the S8E3-03031D has an efficiency of 73% and an operating temperature range of -10°C to 70°C with derating. It offers 2kV of voltage isolation. The unit is chassis mounted, with dimensions of 172.0mm x 69.0mm x 33.0mm.
This part is listed as obsolete. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
The converter provides three outputs: 5V at 3A, +12V at 1.2A, and -12V at 300mA.
The unit accepts an alternating current input voltage ranging from 85 to 132 volts.
Yes, the power supply includes an adjustable output feature to fine-tune voltage levels.
The device operates reliably between -10 degrees Celsius and 70 degrees Celsius with derating applied at higher temperatures.
The converter is housed in an enclosed chassis mount enclosure measuring 172.0mm by 69.0mm by 33.0mm.
