| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Ripple | |
| Tape & Reel | |
| Type | |
| Voltage |

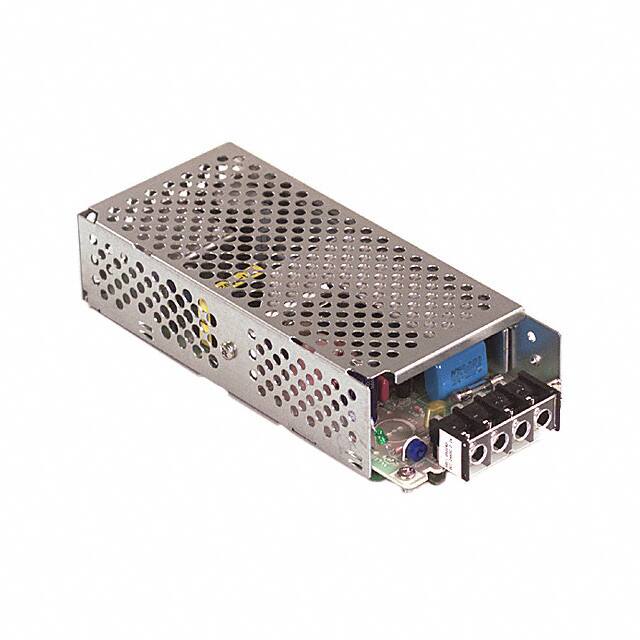

The Omron S8E1-05005D is a compact and economical AC/DC power supply designed for ITE (Commercial) applications. This open-frame converter delivers a 50W output capacity with a fixed 5V output voltage and a maximum current of 5A. It features an efficiency of 83% and includes adjustable output capabilities via a variable resistor.
The unit operates with a 120 VAC input voltage (85 to 132 V range) and accepts frequencies from 47 to 450 Hz. Key electrical specifications include a maximum input current of 0.4A, leakage current of 0.5mA, and inrush current of 25A. It also incorporates a noise filter and overload protection.
Designed for chassis mounting, the S8E1-05005D has dimensions of 161.0mm x 69.0mm x 37.0mm. The operating temperature range is -10°C to 70°C with derating. The power supply is approved by CSA and UR, ensuring compliance with relevant safety standards.
The S8E1-05005D has an output voltage of 5V and a maximum output current of 5A.
The power rating of the S8E1-05005D is 50W.
The typical efficiency of the S8E1-05005D is 83%.
The operating temperature range for the S8E1-05005D is -10°C to 70°C, with derating.
The dimensions of the S8E1-05005D are 161.0mm in length, 69.0mm in width, and 37.0mm in height.
The S8E1-05005D is approved by CSA and UR.
