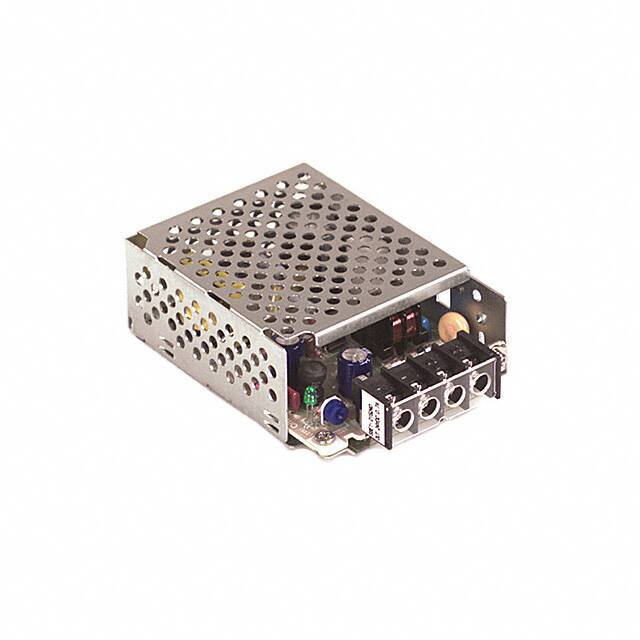

The Omron S8E1-01524D is an open-frame AC DC converter designed for ITE (Commercial) applications. It delivers 15W of power with a stable 24V output voltage and a maximum current of 700mA.
This converter operates with a universal input voltage range of 120 VAC and boasts an efficiency of up to 83%. Key features include adjustable output, DC input capability, and universal input, making it versatile for various designs. The unit is designed for chassis mounting and has a compact size with dimensions of 94.0mm x 69.0mm x 34.0mm.
With a 2kV voltage isolation and an operating temperature range of -10°C to 70°C (with derating), the S8E1-01524D is built for reliable performance in commercial environments. It is approved by CSA and UR agencies, ensuring compliance with safety standards.
The S8E1-01524D has an output power capacity of 15W.
The S8E1-01524D provides a 24V output voltage and a 700mA output current.
The S8E1-01524D operates with a 120 VAC input voltage.
The typical efficiency of the S8E1-01524D is 83%.
The dimensions are 94.0mm in length, 69.0mm in width, and 34.0mm in height.
The operating temperature range is -10°C to 70°C, with derating.
The S8E1-01524D is designed for chassis mounting.
