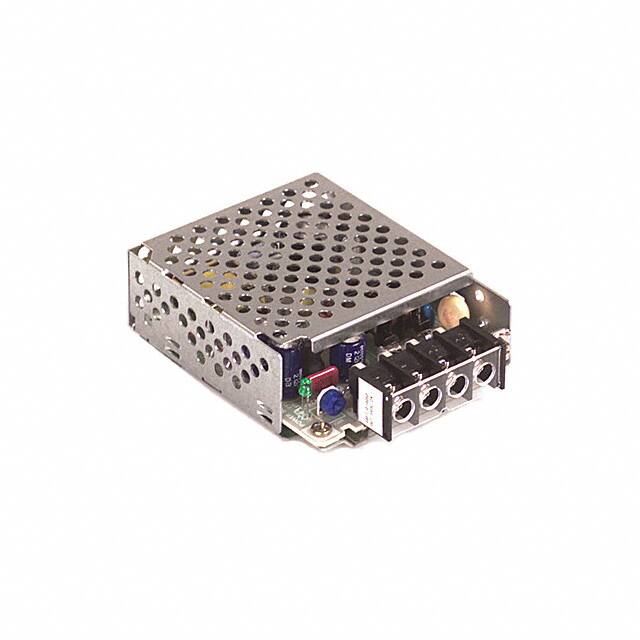

The Omron S8E1-01024D is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers 10W of power with a single 24V output and a maximum current of 500 mA.
This converter operates with a 120 VAC input voltage and a frequency range of 47 to 450 Hz. It boasts an efficiency of 83% and features adjustable output, DC input capability, and universal input. The operating temperature range is -10°C to 70°C with derating.
With a chassis mount type, the S8E1-01024D has dimensions of 85.0mm x 69.0mm x 28.0mm. It also includes an isolation voltage of 2 kV and is approved by CSA and UR agencies.
The output voltage is 24 V.
The maximum output current is 500 mA.
The power rating is 10 W.
The input voltage is 120 VAC, with a range of 85 to 132 V.
The operating temperature range is -10°C to 70°C with derating.
It uses a chassis mount type.
