| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Ripple | |
| Type | |
| Voltage |

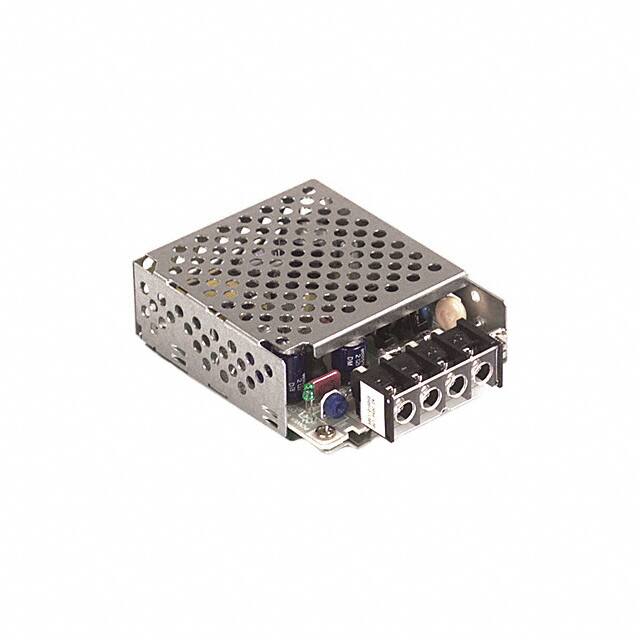

The Omron S8E1-01005D is a compact and economical AC/DC switching power supply designed for ITE (Commercial) applications. This open-frame converter delivers 10W of power with a single 5V output at 2A.
Key electrical specifications include a wide input voltage range of 85 to 132 VAC, an efficiency of up to 83%, and adjustable output voltage with a ±5% range. It offers a maximum ripple of 2% (p-p) and features overload and overvoltage protection (for 5V models).
The unit operates within an ambient temperature range of -10°C to 70°C (with derating) and has dimensions of 85.0mm x 69.0mm x 28.0mm. It is chassis mountable and designed for reliable performance in commercial environments.
The S8E1-01005D has an output power capacity of 10W.
The S8E1-01005D provides a 5V output voltage.
The maximum output current for the S8E1-01005D is 2A.
The S8E1-01005D accepts an input voltage range of 85 to 132 VAC.
The typical efficiency of the S8E1-01005D is 83%.
Yes, the S8E1-01005D features overload protection at 105% minimum of rated load current.
The operating temperature range for the S8E1-01005D is -10°C to 70°C, with derating.
