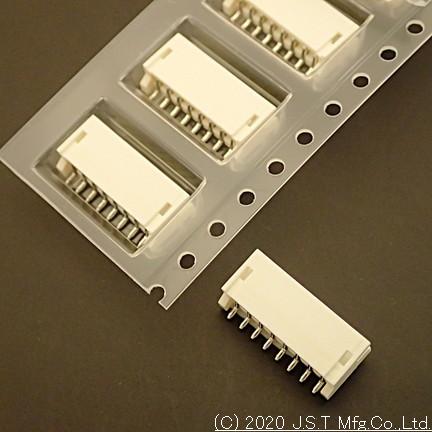

S8B-ZR-SM2-TF The JST Corporation S8B-ZR-SM2-TF is an 8-position connector with a 1.5mm pitch. It features a surface-mount, side-entry configuration.
Mfr Part #:

S8B-ZR-SM2-TF

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
The JST Corporation S8B-ZR-SM2-TF is an 8-position connector with a 1.5mm pitch. It features a surface-mount, side-entry configuration.
✓ Total Stock: 2,000 pcs
$ Price Range: $1.00

S8B-ZR-SM2-TF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Micro Diversified Inc. ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 2004 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S8B-ZR-SM2-TF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Pitch
Positions
Storage Temperature
Tape & Reel
View Similar Products (0)

S8B-ZR-SM2-TF Description

Short technical summary and product information.

The S8B-ZR-SM2-TF from JST Corporation is a connector belonging to the ZR/ZH series, designed with a 1.5mm pitch. This component features 8 positions and is configured for side-entry, right-angle, surface-mount applications.



It offers a maximum current rating of 0.7A for ZR-IDC connections and 1A for ZH-Crimp connections. The connector is designed for reliable electrical connections in various electronic assemblies.



This part is suitable for applications requiring compact and efficient interconnect solutions. Its surface-mount design facilitates automated assembly processes on printed circuit boards.

S8B-ZR-SM2-TF Quick Information

Product Type: Connector
Series: ZR / ZH
Canonical Name: S8B-ZR-SM2-TF 8 Position 1.5mm Pitch Surface Mount Connector
Subcategory: Terminal Strips and Turret Boards

S8B-ZR-SM2-TF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S8B-ZR-SM2-TF Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

S8B-ZR-SM2-TF Features

  • 8 positions for versatile connections.
  • 1.5mm pitch for compact designs.
  • Surface mount, right-angle configuration.
  • Max current rating of 1A.
  • RoHS3 compliant for environmental standards.

S8B-ZR-SM2-TF Applications

  • Ideal for compact electronic devices.
  • Suitable for automated PCB assembly.
  • Used in signal and power interconnects.
  • Applicable in consumer electronics.
  • Facilitates efficient wiring solutions.

S8B-ZR-SM2-TF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the S8B-ZR-SM2-TF terminal strip?

The pitch is 1.5 mm.

How many positions does the S8B-ZR-SM2-TF have?

It has 8 positions.

What is the maximum current rating for the ZR – IDC connection?

The maximum current rating is 0.7A.

What is the maximum current rating for the ZH – Crimp connection?

The maximum current rating is 1A.

What mounting type is used for the S8B-ZR-SM2-TF?

It uses surface mount technology.
