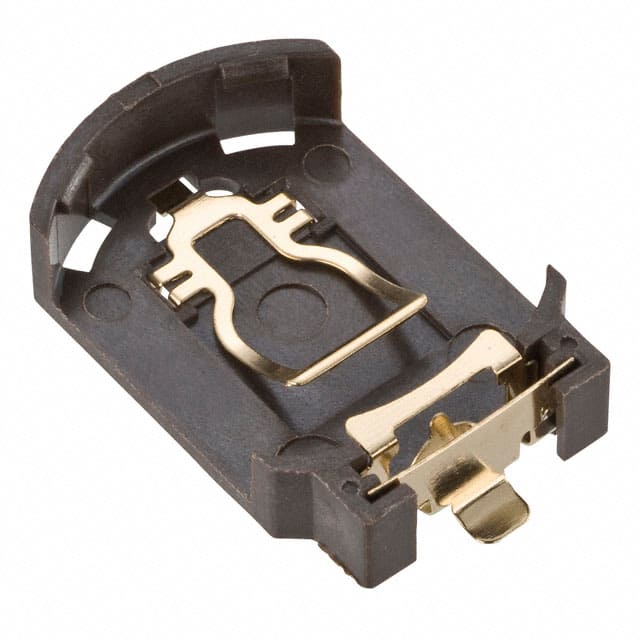

The S8421-45R from Harwin Inc. is an insulated SMT battery coin cell holder/retainer designed for Ø20mm batteries, specifically the CR2032 type. It features a surface mount design with SMD (SMT) tab termination, allowing for automated pick-and-place assembly. The holder accommodates a single coin cell and has an open style for easy battery insertion and removal.
Key specifications include a contact resistance of 30 mΩ maximum, insulation resistance of 1000 MΩ minimum, and a dielectric withstanding voltage of 220 V AC for 1 minute. The operating temperature range per the datasheet is -55°C to +85°C. The holder is constructed with a PPS (Polyphenylene Sulfide) moulding material with 30% glass fiber, rated UL94 V-0 for flammability, and phosphor bronze contacts with gold flash finish for reliable electrical performance.
The component is packaged in tape and reel conforming to EIA-481, with a quantity of 500 pieces per reel. The height above board is 5.30 mm. This holder is suitable for various portable and battery-powered applications requiring a reliable coin cell retention solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.48 | $1.48 |
| 50+ | $1.30 | $1.30 |
| 100+ | $1.23 | $1.23 |
| 250+ | $1.14 | $1.14 |
| 500+ | $1.08 | $1.08 |
| 1,000+ | $1.02 | $1.02 |
| 1,500+ | $0.99 | $0.99 |
| 2,500+ | $0.95 | $0.95 |
| 3,500+ | $0.92 | $0.92 |
| 5,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Per the datasheet, the operating temperature range is -55°C to +85°C.
The S8421-45R is supplied in tape and reel packaging with 500 pieces per reel, conforming to EIA-481 standard.
The part is listed as RoHS3 Compliant, but this status is unverified.
The maximum contact resistance is 30 mΩ.
The minimum insulation resistance is 1000 MΩ.
The dielectric withstanding voltage is 220 V AC for 1 minute.
The moulding material is PPS with 30% glass fiber, UL94 V-0 rated, brown. The contacts are phosphor bronze with gold flash finish.
