| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

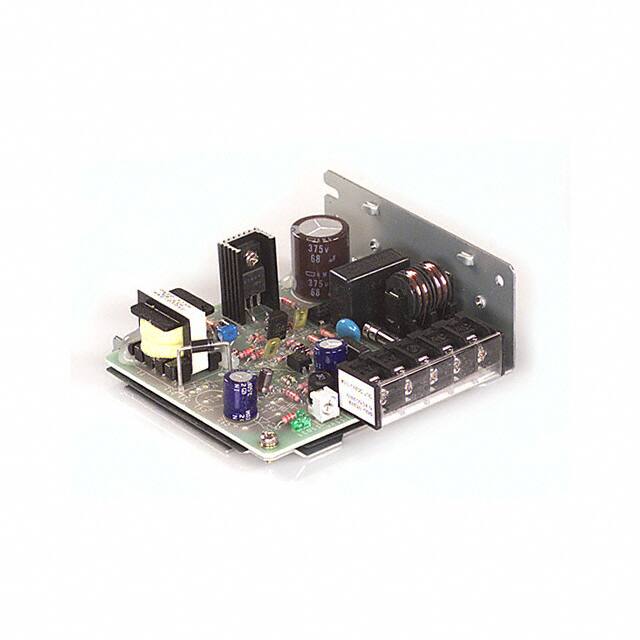

The Omron S82J series offers industrial power supplies with capacities up to 600W, including the S82J-01024A model. This specific unit is an open-frame, chassis mount AC/DC converter rated for 10W of power, providing a stable 24V output at 0.5A.
Key electrical specifications include a universal input voltage range of 100 to 240 VAC, an efficiency of 77%, and a single output. It operates within a temperature range of -10°C to 60°C. The dimensions are 97.0mm x 90.0mm x 35.0mm.
This power supply is designed for ITE (Commercial) applications and carries approvals from CE, CSA, UL, UR, and VDE. Features include adjustable output, load sharing, remote sense, and universal input capabilities. The isolation voltage is rated at 3 kV.
100 to 240 VAC.
24 V.
10W.
-10°C to 60°C.
Chassis Mount, Open Frame.
CE, CSA, UL, UR, VDE.
Adjustable Output, Load Sharing, Remote Sense, Universal Input.
