| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

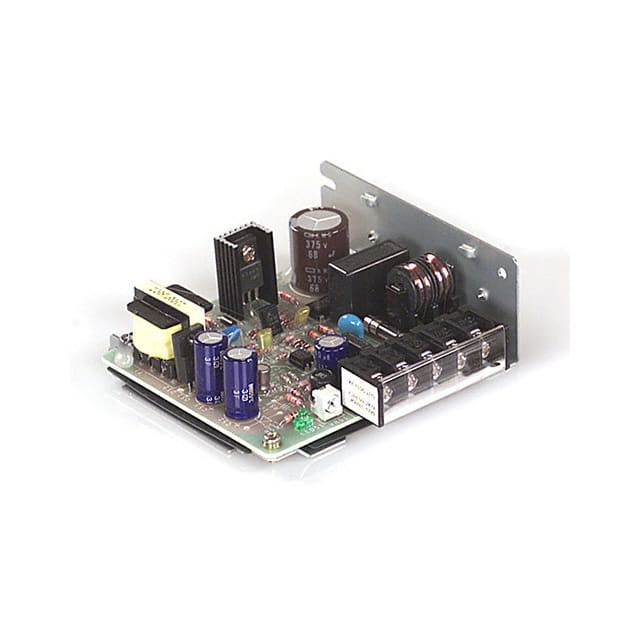

The Omron S82J series offers industrial power supplies with capacities up to 600W, including the S82J-01005A model. This specific unit is an open-frame AC/DC converter designed for chassis mounting, providing a stable 5V output at 2A, totaling 10W of power.
Key features include a universal input voltage range (100 to 240 VAC), making it suitable for global applications. The converter operates efficiently at 77% and is approved by CE, CSA, UL, UR, and VDE. Its compact dimensions (97.0mm x 90.0mm x 35.0mm) allow for integration into various systems.
This power supply is designed for ITE (Commercial) applications and operates within a temperature range of -10°C to 60°C. It is RoHS3 compliant and rated MSL 1.
The output voltage is 5V.
The maximum output current is 2A.
The power rating is 10W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is -10°C to 60°C.
The RoHS status is RoHS3 Compliant.
