| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,103 pcs
|
9103 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Finish | |
| Height Above Board | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination Style |

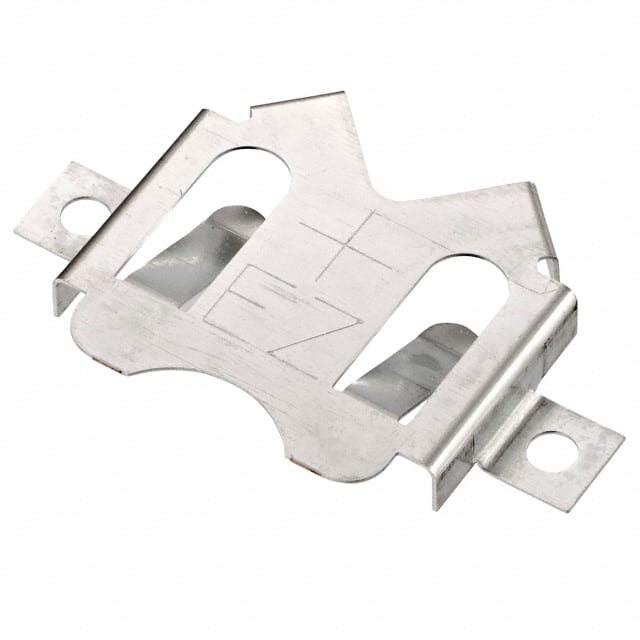

The Harwin Inc. S8211-46R is a surface-mount battery holder designed to retain 20mm coin cell batteries. This component is suitable for single-cell applications and features a low profile, standing only 4.00mm above the PCB.
Constructed from Phosphor Bronze with a Tin over Nickel finish on contact areas, the S8211-46R is rated for an operating temperature range of -40°C to 105°C. It is designed for tape and reel packaging, with 550 units per reel, making it suitable for automated assembly processes.
This retainer is compatible with various battery types including CR2016, CR2025, CR2032, BR2016, BR2020, and BR2025, among others. It requires an additional contact pad under the holder for the negative terminal connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The S8211-46R is suitable for 20mm diameter coin cell batteries, including CR2016, CR2025, CR2032, BR2016, BR2020, and BR2025.
The S8211-46R operates within a temperature range of -40°C to 105°C.
The S8211-46R has a height of 4.00mm above the PCB.
The S8211-46R supports one battery cell.
The S8211-46R is made of Phosphor Bronze with a 3µ 100% Tin finish over Nickel.
There are 550 units per reel for the S8211-46R.
