| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Height | |
| Length | |
| Material | |
| Material Thickness | |
| Mounting Type | |
| Tape & Reel | |
| Type | |
| Type Attributes | |
| Width |

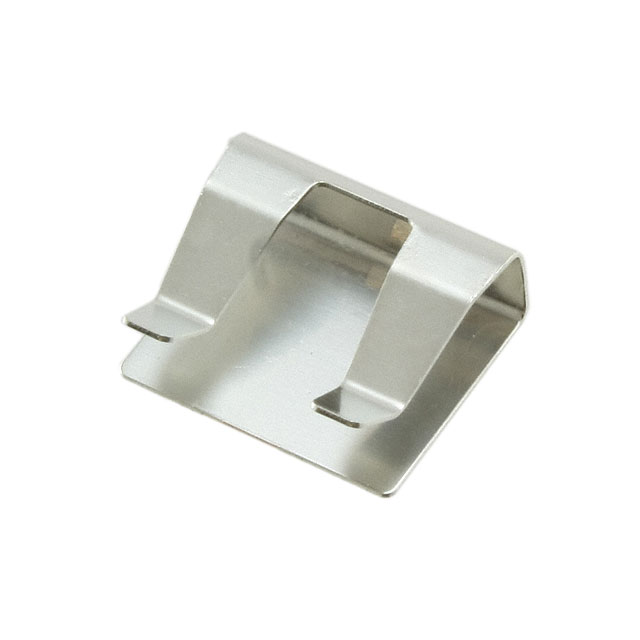

The S8131-46R is a C-Type cable clip manufactured by Harwin Inc. for cable management and coax grounding applications. It features a solder mount for secure attachment to PCBs and is suitable for automated placement via pick-and-place machines. The clip is constructed from phosphor bronze with a tin-plated finish (datasheet specifies copper alloy with tin finish), providing corrosion resistance. It has an elongated, split design with dimensions of 10.00mm length, 8.00mm width, and 3.56mm height, with a material thickness of 0.20mm. The clip accommodates cables with diameters from 2.00mm to 3.00mm, supporting up to three 2mm cables or a single 3mm cable, making it ideal for grounding coaxial cable braiding such as RG58. It is packaged in tape and reel format with 800 pieces per reel for efficient automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.31 | $0.31 |
| 25+ | $0.29 | $0.29 |
| 50+ | $0.28 | $0.28 |
| 100+ | $0.26 | $0.26 |
| 250+ | $0.25 | $0.25 |
| 800+ | $0.23 | $0.23 |
| 1,600+ | $0.22 | $0.22 |
| 2,400+ | $0.21 | $0.21 |
| 4,000+ | $0.20 | $0.20 |
| 5,600+ | $0.20 | $0.20 |
| 8,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clip accommodates cables with diameters from 2.00mm to 3.00mm, supporting up to 3 x Ø2mm or 1 x Ø3mm cables.
It is a solder mount clip, designed for surface mounting on PCBs.
According to existing data, it is RoHS3 compliant, but this is unverified and has low confidence.
It is packaged in tape and reel format with a reel quantity of 800 pieces.
The existing database specifies phosphor bronze with tin plating, while the datasheet indicates copper alloy with tin finish. Both are tin-finished, but the exact material is unverified.
