Mfr Part #:

S8121-46R

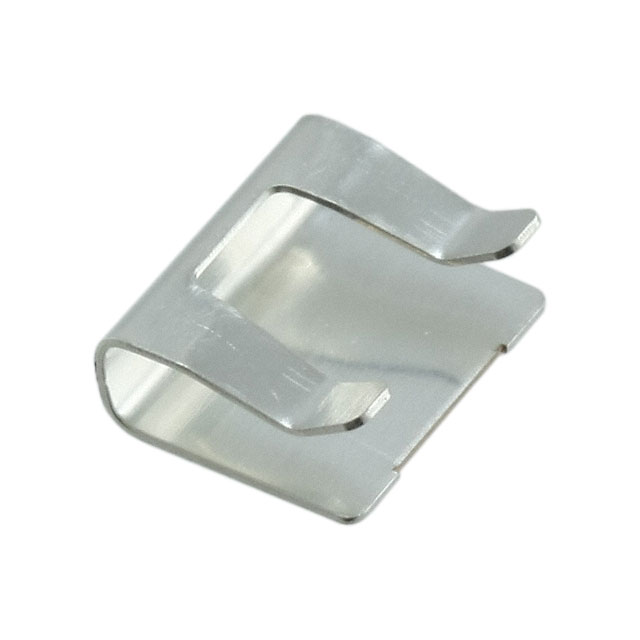

C-Type cable clip from Harwin Inc. with solder mount, 7.00mm length, 5.51mm width, 2.54mm height, phosphor bronze material, tin plated.

✓ Total Stock: 262 pcs

$ Price Range: $0.15 - $0.29

S8121-46R Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	262 pcs On Request	262 pcs	On Request	1	On Request	On Request	14+	On Request	On Request

S8121-46R Description

Short technical summary and product information.

The S8121-46R is a C-Type cable clip designed for solder mounting on PCBs. It features a 7.00mm length, 5.50mm width, and 2.55mm height, with a 1.30mm D dimension. The clip is made of phosphor bronze (copper alloy) with a tin finish, providing corrosion resistance. It is supplied in tape and reel packaging with a reel quantity of 1300 pieces. The clip is suitable for cable retention with two Ø1.5mm and one Ø2.0mm cable diameters. It has no coax grounding feature. The material thickness is 0.20mm. This component is RoHS3 compliant, REACH unaffected, and has MSL 1 (unlimited).

S8121-46R Quick Information

Product Type: Cable Clip

Canonical Name: C-Type Cable Clip, Solder Mount, 7.00mm x 5.51mm x 2.54mm, Phosphor Bronze, Tin Plated, Silver

Subcategory: C-Type Clip

S8121-46R Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S8121-46R Estimated Pricing

Qty	Low	High
1+	$0.29	$0.29
10+	$0.25	$0.25
25+	$0.23	$0.23
50+	$0.22	$0.22
100+	$0.21	$0.21
250+	$0.20	$0.20
500+	$0.19	$0.19
1,300+	$0.18	$0.18
2,600+	$0.17	$0.17
3,900+	$0.16	$0.16
6,500+	$0.16	$0.16
9,100+	$0.15	$0.15
13,000+	$0.15	$0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

S8121-46R Features

C-Type clip with solder mounting.
Phosphor bronze material with tin plating.
Corrosion resistant design.
7.00mm length, 5.50mm width.
Tape and reel packaging of 1300 pieces.

S8121-46R Applications

Cable retention in PCB assemblies.
Suitable for automated soldering processes.
Used in equipment requiring corrosion resistance.

S8121-46R FAQs

7 frequently asked questions generated from this part’s specifications.

What is the mounting type for this cable clip?

Solder mount.

What material is the S8121-46R made of?

Phosphor Bronze (Copper Alloy) with Tin Plating.

What are the dimensions of this clip?

Length 7.00mm, Width 5.50mm, Height 2.55mm, D dimension 1.30mm.

What is the packaging format and quantity?

Tape & Reel, 1300 pieces per reel.

Is this component RoHS compliant?

RoHS3 Compliant (unverified).

What cable sizes does it retain?

Two Ø1.5mm cables and one Ø2.0mm cable.

Does it have corrosion resistance?

Yes, it features corrosion resistance.
