| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
193 pcs
|
193 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Finish | |
| Height | |
| Length | |
| Material | |
| Material Thickness | |
| Mounting Type | |
| Type | |
| Type Attributes | |
| Width |

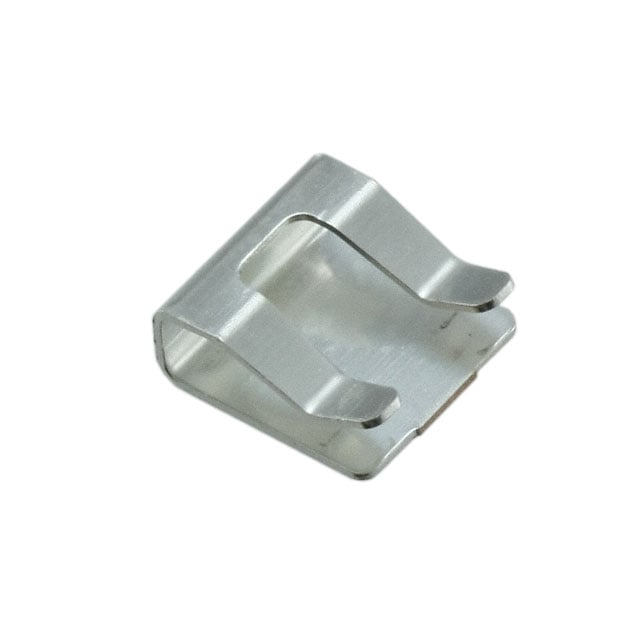

The Harwin S8111-46R is a C-Type cable clip designed for surface mount soldering. It is constructed from phosphor bronze with a tin-plated finish, providing corrosion resistance. The clip measures 5.00mm in length, 5.00mm in width, and 2.05mm in height, with a material thickness of 0.20mm.
This component is suitable for grounding braided coax cables and retaining insulated cables. It supports coax cable types RG174, RG179, and RG316, and offers cable retention configurations of 3 x 1.0mm and 2 x 1.5mm. The elongated, split design allows for secure cable management.
The S8111-46R is supplied in tape and reel packaging with a reel quantity of 1500 pieces, making it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.24 | $0.24 |
| 25+ | $0.23 | $0.23 |
| 50+ | $0.22 | $0.22 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.19 | $0.19 |
| 500+ | $0.18 | $0.18 |
| 1,500+ | $0.17 | $0.17 |
| 3,000+ | $0.16 | $0.16 |
| 4,500+ | $0.16 | $0.16 |
| 7,500+ | $0.15 | $0.15 |
| 10,500+ | $0.15 | $0.15 |
| 15,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part is listed as RoHS3 Compliant, but this is unverified from the datasheet.
Length: 5.00mm, Width: 5.00mm, Height: 2.05mm.
Phosphor Bronze with Tin plating.
3 x 1.0mm and 2 x 1.5mm cables.
RG174, RG179, RG316.
Tape and Reel, 1500 pieces per reel.
Solder, SMT.
