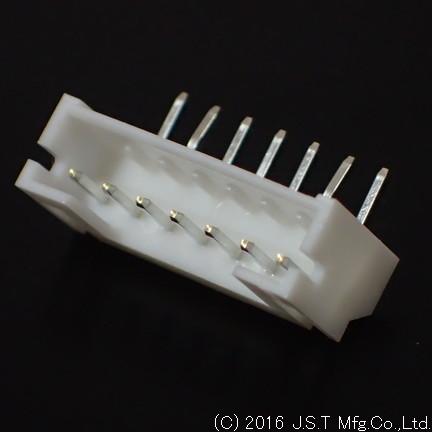

This JST Manufacturing S7B-PH-K is a right-angle header connector designed for board-to-wire applications. It features 7 positions with a 2mm pitch, suitable for compact designs. The header is rated for 2A current and 100V, with a brass contact material and tin-lead plating.
The component is designed for through-hole mounting and includes a detent lock for secure mating. The insulation material is Polyamide (PA66) or Nylon 6/6, with a flammability rating of UL94 V-0. The operating temperature range is -25°C to 85°C.
This header belongs to the PH series and is suitable for various interconnect applications where a reliable and compact connection is required. The right-angle orientation facilitates efficient PCB layout.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The S7B-PH-K header has 7 positions.
The pitch of the S7B-PH-K connector is 2mm.
The current rating for the S7B-PH-K header is 2A.
The voltage rating of the S7B-PH-K header is 100V.
The S7B-PH-K header is mounted using a through-hole, right-angle configuration.
The operating temperature range for the S7B-PH-K is -25°C to 85°C.
The S7B-PH-K header has a flammability rating of UL94 V-0.
