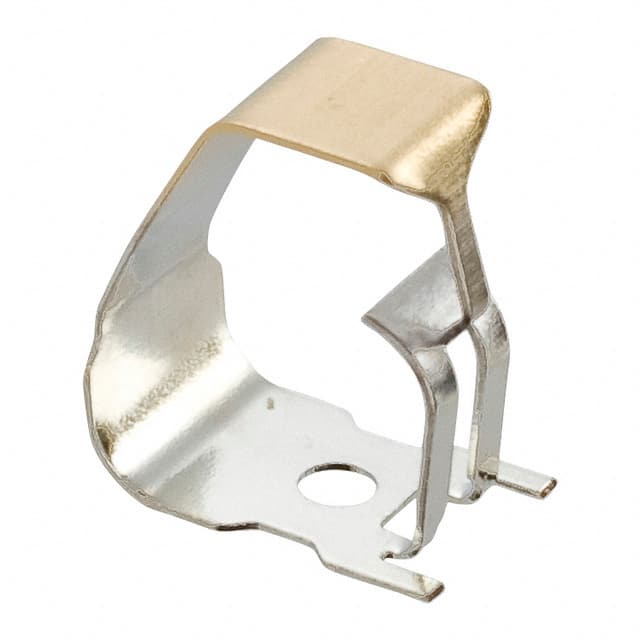

S7111-42R The Harwin Inc. S7111-42R is a surface mount spring contact with a height of 4.5mm. It features Gold plating on the contact area and Tin on the termination, and is supplied in tape and reel packaging.
Mfr Part #:

S7111-42R

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The Harwin Inc. S7111-42R is a surface mount spring contact with a height of 4.5mm. It features Gold plating on the contact area and Tin on the termination, and is supplied in tape and reel packaging.
✓ Total Stock: 260 pcs
$ Price Range: $0.99

S7111-42R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
260 pcs
On Request
260 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S7111-42R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Attachment Method
Automotive Grade
Contact Finish
Height
Industrial Grade
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Plating
Storage Temperature
Tape & Reel
Termination Finish
Type
Width
View Similar Products (0)

S7111-42R Description

Short technical summary and product information.

The Harwin Inc. S7111-42R is a surface mount spring contact designed for RFI and EMI shielding applications. This component features a box style contact with a protected tip to prevent hooking.



Key specifications include a free height of 4.5mm, working height of 3.8mm, and minimum height of 3.4mm. The contact area is plated with Gold, while the termination uses Tin plating. The overall dimensions are 3.50mm in length and 2.50mm in width.



Constructed from Copper Alloy, this spring contact operates within a temperature range of -55°C to 125°C. It is designed for solder attachment and is suitable for automated placement as it comes packaged in tape and reel.



This part is compliant with RoHS3 standards and has an MSL rating of 1.

S7111-42R Quick Information

Product Type: Spring Contact
Canonical Name: Harwin Inc. S7111-42R SMT Box Style Spring Contact
Subcategory: RFI/EMI Shielding

S7111-42R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S7111-42R Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

S7111-42R Features

  • Surface mount box style spring contact.
  • 4.5mm free height, 3.8mm working height.
  • Gold contact area, Tin termination plating.
  • Copper Alloy construction for durability.
  • Tape and Reel packaging for automation.

S7111-42R Applications

  • Ideal for RFI and EMI shielding.
  • Connects multiple PCBs effectively.
  • Prevents EMC noise and static discharge.
  • Suitable for automated assembly processes.

S7111-42R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the height of the S7111-42R spring contact?

The free height is 4.5mm, with a working height of 3.8mm and a minimum height of 3.4mm.

What materials and plating are used on the S7111-42R?

The contact is made of Copper Alloy with Gold plating on the contact area and Tin plating on the termination.

What is the operating temperature range for this spring contact?

The operating temperature range is -55°C to 125°C.

How is the S7111-42R mounted?

This spring contact is designed for surface mounting.

What is the RoHS status of the S7111-42R?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
