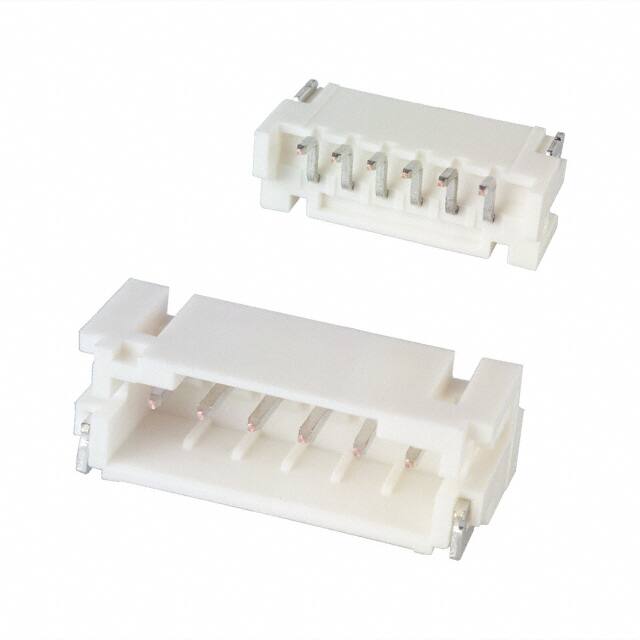

The JST S6B-PH-SM4-TB(LF)(SN) is a 6-position, single-row, 2.00mm pitch header from the PH series. It features a surface mount, right angle mounting style with solder termination. The contacts are male pins made of copper alloy with a tin finish. The insulator is natural polyamide (PA6T) with a UL94 V-0 flammability rating.
This shrouded header employs a 4-wall design with a detent lock fastening system and includes a solder retention feature for reliable PCB mounting. It is rated for a maximum current of 2A and a maximum voltage of 100V. The operating temperature range is -25°C to 85°C, making it suitable for a variety of environments.
Designed for board-to-cable/wire applications, the connector's compact 2.00mm pitch saves space on high-density PCBs. The mating contact length is 3.30mm, and the insulation height is 5.51mm. All positions are loaded.
It has 6 positions in a single row, all loaded.
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 2A.
The maximum voltage rating is 100V.
It is surface mount, right angle.
The operating temperature range is -25°C to 85°C.
The contact finish is tin.
