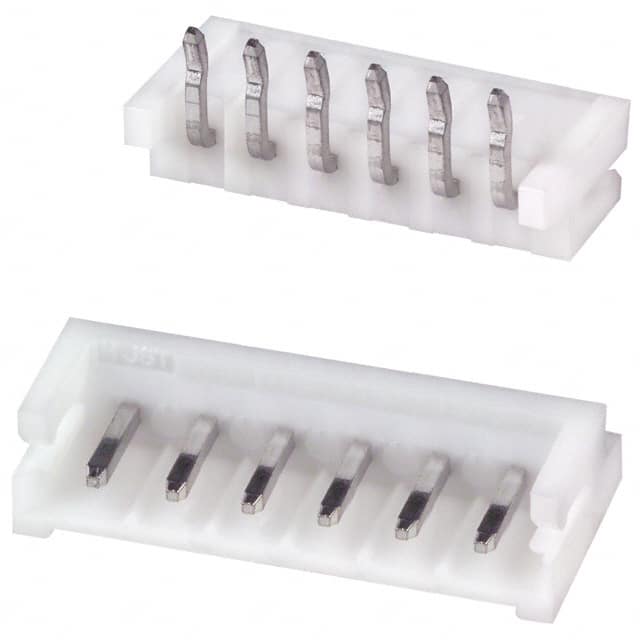

The JST S6B-EH is a 6-position, single-row, right-angle header from the EH series of wire-to-board connectors. It features a 2.5mm pitch and a shrouded 3-wall design with a latch lock fastening system for secure mating. The header is rated for 3A per contact (AWG #22) and 250V AC/DC, with an operating temperature range of -25°C to +85°C.
Electrical characteristics include an initial contact resistance of 10 mΩ max, insulation resistance of 1000 MΩ min, and a withstanding voltage of 800 VAC for one minute. The contacts are made of brass with a tin-lead finish (though the datasheet indicates tin-plated contacts and RoHS2 compliance, creating a conflict to be verified). The insulation is natural polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.
This header is designed for through-hole mounting with right-angle orientation and supports both press-fit and solder termination. It is intended for board-to-cable/wire applications, offering a low-profile (4.20mm insulation height) solution for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.21 | $0.21 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.16 | $0.16 |
| 1,000+ | $0.15 | $0.15 |
| 5,000+ | $0.13 | $0.13 |
| 10,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
2.5mm (0.098").
3A per contact (AWG #22).
250V AC/DC.
Through-hole, right-angle with press-fit and solder termination.
-25°C to +85°C.
Initial: 10 mΩ max; after environmental tests: 20 mΩ max.
