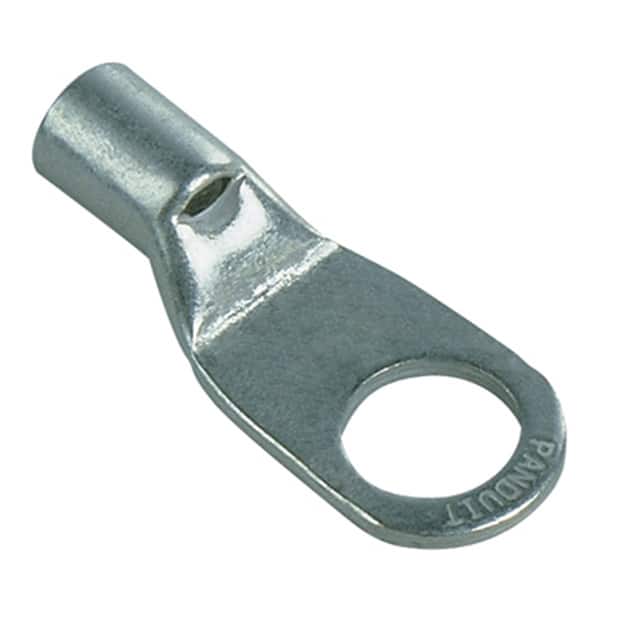

S6-14R-T Non-insulated ring terminal for 6 AWG wire with 1/4" stud size. Features crimp termination with funnel opening and seamless tubular barrel.
Mfr Part #:

S6-14R-T

Available from 1 distributors
Mfr Name: Panduit Corporation
Panduit Corporation
Non-insulated ring terminal for 6 AWG wire with 1/4" stud size. Features crimp termination with funnel opening and seamless tubular barrel.
✓ Total Stock: 200 pcs
$ Price Range: $1.04

S6-14R-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S6-14R-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Insulation
Lead Style
Length
Mounting Type
Stud
Terminal Type
Termination
Thickness
Voltage Rating
Width
Wire Gauge
View Similar Products (0)

S6-14R-T Description

Short technical summary and product information.

The Panduit S6-14R-T is a non-insulated tubular ring terminal designed for 6 AWG wire with a 1/4" stud size. It features a seamless tubular barrel with an internal bevel for easy wire insertion and an inspection window to verify proper insertion. The flat sided terminal is made of copper with a tin finish, providing reliable conductivity and corrosion resistance. Rated for up to 2000V (UL 486A-486B) and a maximum operating temperature of 150°C, it is suitable for power applications. The crimp termination with funnel opening ensures consistent high-quality connections. Minimum tensile strength is 100 lbf. The terminal is free hanging (in-line) and has a length of 33.02mm, tongue width of 12.19mm, and thickness of 2.03mm. Available in standard package quantity of 20 pieces per bag and 200 per carton.

S6-14R-T Quick Information

Product Type: Ring Terminal
Series: S
Canonical Name: Panduit S6-14R-T Non-Insulated Ring Terminal, 6 AWG, 1/4" Stud
Subcategory: Non-Insulated Ring Terminals

S6-14R-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S6-14R-T Estimated Pricing

Qty Low High
200+ $1.04 $1.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

S6-14R-T Features

  • Seamless tubular barrel for consistent crimp.
  • Internal bevel for quick wire insertion.
  • Inspection window for visual wire check.
  • Rated for 2000V and 150°C max.
  • Non-insulated, tin-plated copper construction.

S6-14R-T Applications

  • Power distribution and control circuits.
  • Industrial machinery wiring.
  • Electrical panel connections.
  • Automotive and marine applications.

S6-14R-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the S6-14R-T?

2000V (UL 486A-486B rated).

What is the mounting type of the S6-14R-T?

Free Hanging (In-Line).

What wire gauge does the S6-14R-T accept?

6 AWG wire.

What stud size does the S6-14R-T fit?

1/4 inch stud.

What is the maximum operating temperature?

150°C (302°F).

What is the minimum tensile strength?

100 lbf for 6 AWG wire.

What termination style does it use?

Crimp with funnel opening.
