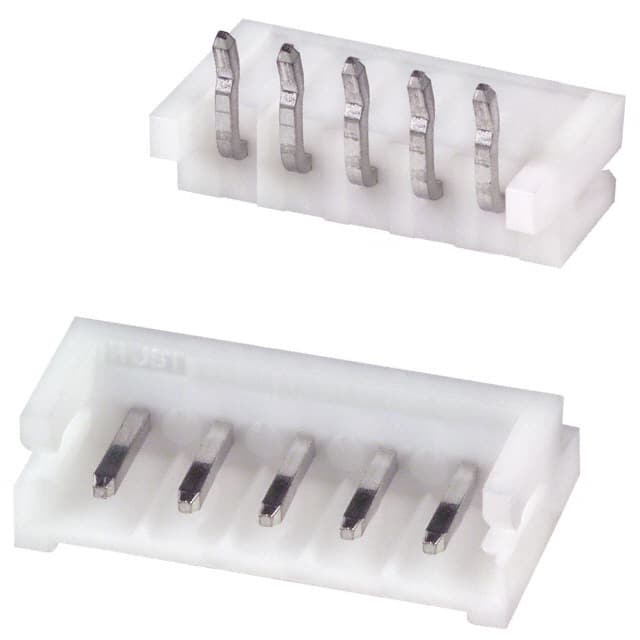

S5B-EH(LF)(SN) JST Manufacturing S5B-EH(LF)(SN) is a 5-position, 2.5mm pitch, through hole right angle header with male pins. It is rated for 3A current and 250V voltage.
Mfr Part #:

S5B-EH(LF)(SN)

Available from 3 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST Manufacturing S5B-EH(LF)(SN) is a 5-position, 2.5mm pitch, through hole right angle header with male pins. It is rated for 3A current and 250V voltage.
✓ Total Stock: 179 pcs

S5B-EH(LF)(SN) Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
104 pcs
On Request
104 pcs On Request 1 On Request On Request On Request On Request On Request
Innova Technologies ✓
Non-Authorised Inventory information
64 pcs
On Request
64 pcs On Request 1 On Request On Request 18+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S5B-EH(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

S5B-EH(LF)(SN) Description

Short technical summary and product information.

The JST Manufacturing S5B-EH(LF)(SN) is a 5-position, single row header from the EH series. It features a 2.50mm pitch and a through hole, right angle mounting style, making it suitable for board-to-cable/wire connections. The connector is shrouded with a 3-wall design and utilizes a latch lock fastening mechanism for secure mating.



The header has male pin contacts made of brass with a tin finish. The contact length is 4.00mm, and the insulation is made of polyamide (PA66) nylon 6/6 in natural color with an insulation height of 4.20mm. The material flammability rating is UL94 V-0.



Electrically, the header is rated for 3A current and 250V voltage. Contact resistance is 20mΩ maximum initial and 30mΩ maximum after environmental tests. Withstanding voltage is 1000V AC for 1 minute, and insulation resistance is 1000MΩ minimum. The operating temperature range is -25°C to 85°C.



The part is designed for PCB thicknesses of 0.8mm to 1.6mm and uses both press-fit and solder termination methods. It is RoHS3 compliant and REACH unaffected, with MSL 1 unlimited.

S5B-EH(LF)(SN) Quick Information

Product Type: Header, Male Pins
Series: EH
Canonical Name: JST Manufacturing S5B-EH(LF)(SN) Header, Male Pins, 5 Position, 2.5mm Pitch, Through Hole, Right Angle
Subcategory: Male Pins

S5B-EH(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

S5B-EH(LF)(SN) Features

  • 5 position, single row header.
  • 2.5mm pitch for compact designs.
  • Through hole, right angle mounting.
  • Shrouded 3-wall design with latch lock.
  • Rated 3A current and 250V voltage.

S5B-EH(LF)(SN) Applications

  • Board to cable/wire connections.
  • Industrial control systems wiring.
  • Consumer electronics internal wiring.
  • Power supply and signal connections.
  • Automotive interior applications.

S5B-EH(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the S5B-EH(LF)(SN) header have?

5 positions.

What is the pitch of the S5B-EH(LF)(SN) header?

2.50mm.

What is the current rating of the S5B-EH(LF)(SN) header?

3A.

What is the voltage rating of the S5B-EH(LF)(SN) header?

250V.

What is the mounting type of the S5B-EH(LF)(SN) header?

Through hole, right angle.

What fastening type does the S5B-EH(LF)(SN) header use?

Latch lock.

What is the operating temperature range of the S5B-EH(LF)(SN) header?

-25°C to 85°C.
