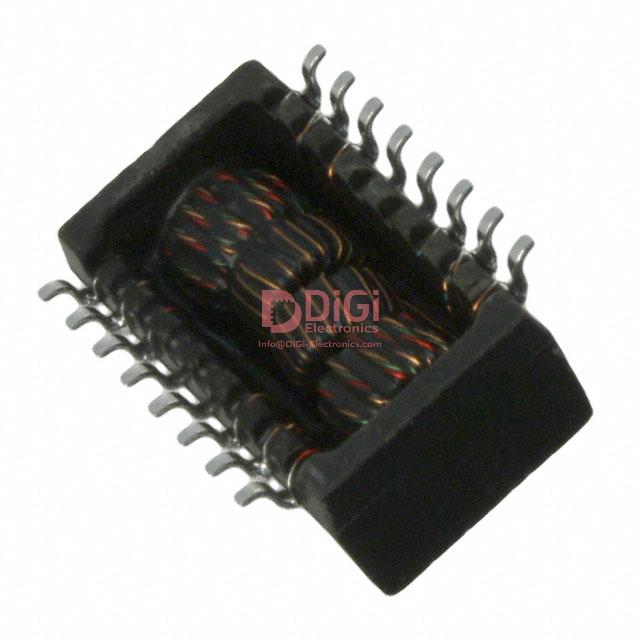

S558-5999-T5 The Bel Fuse S558-5999-T5 is a pulse transformer designed for LAN 10/100 Base-T applications. It features a 350µH inductance and a surface mount package.
Mfr Part #:

S558-5999-T5

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
The Bel Fuse S558-5999-T5 is a pulse transformer designed for LAN 10/100 Base-T applications. It features a 350µH inductance and a surface mount package.
✓ Total Stock: 750 pcs
$ Price Range: $3.00

S558-5999-T5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
750 pcs
On Request
750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

S558-5999-T5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Inductance
Mounting Type
Operating Temperature
SVHC Present
Transformer Type
Turns Ratio
View Similar Products (0)

S558-5999-T5 Description

Short technical summary and product information.

The Bel Fuse S558-5999-T5 is a pulse transformer specifically designed for LAN 10/100 Base-T communication interfaces. This component offers a reliable solution for signal transmission in networking applications.



Key electrical specifications include an inductance of 350µH and a turns ratio of 1CT:1CT for both transmitter and receiver sides. The transformer operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.



Mechanically, the S558-5999-T5 is designed for surface mounting, with dimensions of 0.485" L x 0.285" W and a maximum seated height of 0.225". The packaging is available in Cut Tape (CT) and Digi-Reel® formats, facilitating automated assembly processes.

S558-5999-T5 Quick Information

Product Type: Pulse Transformer
Series: S558
Canonical Name: Bel Fuse S558-5999-T5 Pulse Transformer
Subcategory: Pulse Transformer

S558-5999-T5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

S558-5999-T5 Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

S558-5999-T5 Features

  • LAN 10/100 Base-T pulse transformer.
  • 350µH inductance value.
  • 1CT:1CT turns ratio for transmit and receive.
  • Surface mount package 12.32mm x 7.24mm.
  • Operating temperature -40°C to 85°C.

S558-5999-T5 Applications

  • Used in 10/100 Base-T Ethernet interfaces.
  • For LAN and network communication circuits.
  • Isolates signals in Ethernet transceivers.
  • Applies to network interface card designs.
  • Suitable for Ethernet switch and router applications.

S558-5999-T5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the mounting type of the S558-5999-T5?

Surface Mount.

What is the operating temperature range of the S558-5999-T5?

-40°C to 85°C.

What type of transformer is the S558-5999-T5?

LAN 10/100 Base-T.

What is the turns ratio of the S558-5999-T5?

1CT:1CT transmitter, 1CT:1CT receiver.

What is the inductance value of the S558-5999-T5?

350 µH.

What are the dimensions of the S558-5999-T5?

0.485" L x 0.285" W (12.32mm x 7.24mm) with a seated height of 0.225" (5.72mm).
