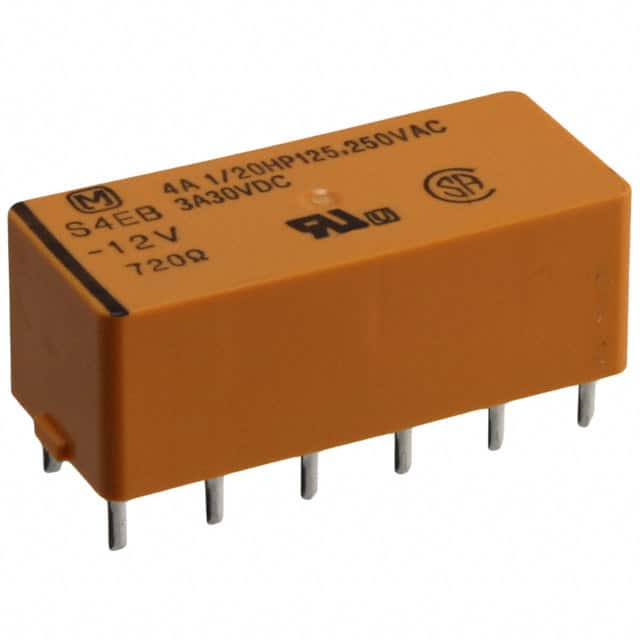

The Panasonic S4EB-12V is a general purpose polarized power relay designed for demanding applications. It features 4 Form A (4PST-NO) contacts, capable of switching up to 4A at 250VAC or 48VDC. The relay operates with a 12VDC coil, drawing 16.7mA and requiring a minimum of 8.4VDC to operate.
With an operate time of 15ms and a release time of 10ms, the S4EB-12V offers efficient switching performance. The contact material is Silver Alloy, Cadmium Free, ensuring reliability. The operating temperature range is -55°C to 65°C, making it suitable for various environmental conditions. The component is housed in a Through Hole DIP package, facilitating easy integration into PCB designs.
This relay is RoHS3 Compliant and Lead Free, aligning with modern environmental standards. Its robust construction and specifications make it a reliable choice for power switching applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the S4EB-12V relay is 12VDC.
The contact current rating of the S4EB-12V relay is 4A.
The S4EB-12V relay has 4 Form A (4PST-NO) contacts.
The operating temperature range for the S4EB-12V relay is -55°C to 65°C.
The S4EB-12V relay comes in a Through Hole DIP package.
The S4EB-12V relay is RoHS3 Compliant.
