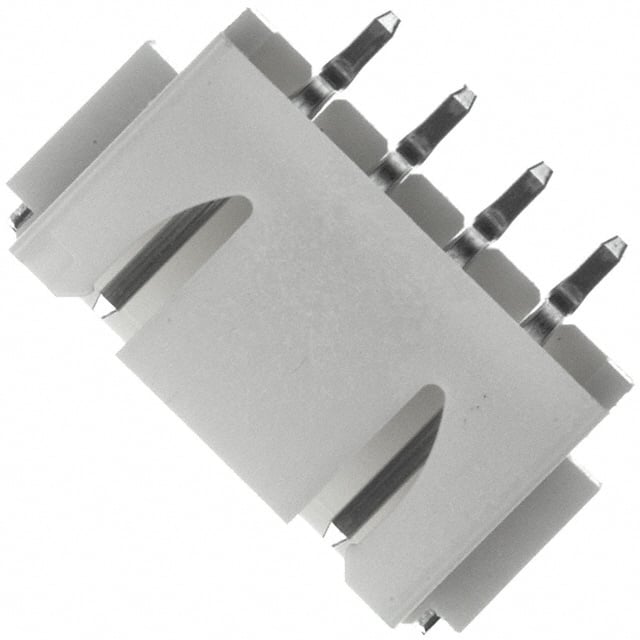

The JST S4B-XH-SM4-TB(LF)(SN) is a 4 position single row surface mount right angle header from the XH series. It features a 2.50mm pitch and a shrouded 4-wall design for secure mating. The header uses square male pins with tin-plated copper alloy contacts and a natural polyamide (PA6T) insulator rated UL94 V-0.
This connector is designed for board-to-cable/wire applications and includes a detent lock fastening system for reliable connection. Solder retention features help secure the component during reflow soldering. The header is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C.
The surface mount right angle orientation allows for low-profile board mounting, making it suitable for space-constrained designs. The insulation height is 6.00mm. All 4 positions are loaded.
It has 4 positions in a single row, all loaded.
The pitch is 2.50mm.
The current rating is 3A and the voltage rating is 250V.
It is surface mount with right angle orientation and solder termination.
Yes, it is a shrouded 4-wall header with a detent lock fastening system.
The operating temperature range is -25°C to 85°C.
The insulation material is Polyamide (PA6T), Nylon 6T with a UL94 V-0 flammability rating.
