| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

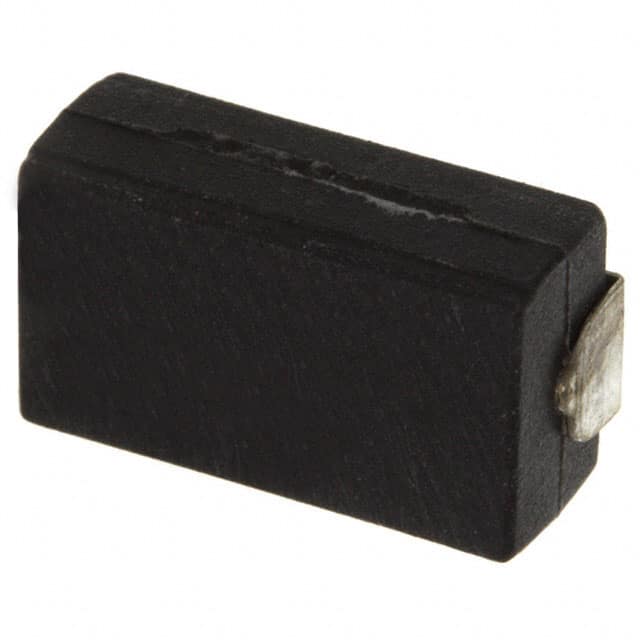

The Riedon S4-10RF1 is a surface mount wirewound resistor designed for demanding applications. It offers a resistance value of 10 Ohms with a tight tolerance of ±1% and a power rating of 2 Watts.
This resistor is built to withstand harsh environmental conditions, featuring an operating temperature range from -55°C to +275°C. Its construction includes features like current sense capability, flame proofing, moisture resistance, and pulse withstanding, making it suitable for safety-critical designs.
The component is housed in a 4525 J-Lead package, indicating a surface mount design. The dimensions are 11.40mm in length and 6.40mm in width, with a height of 5.00mm. It has two terminations.
Key specifications include a temperature coefficient of ±50ppm/°C, contributing to stable performance across varying temperatures. The wirewound composition ensures robust power handling and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 Ohms.
The tolerance is ±1%.
The power rating is 2 Watts.
The operating temperature range is -55°C to 275°C.
The temperature coefficient is ±50ppm/°C.
The dimensions are 11.40mm L x 6.40mm W x 5.00mm H.
It is in a 4525 J-Lead package for surface mounting.
