| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,223 pcs
|
1223 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conflict Minerals | |
| Current | |
| HS Code | |
| Industrial Grade | |
| Junction Capacitance | |
| Leakage Current (Maximum @ Tj=100 °C, VR=VRRM) | |
| Leakage Current (Maximum @ Tj=25 °C, VR=VRRM) | |
| Maximum Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Repetitive Peak Reverse Voltage | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance Junction-to-Ambient | |
| Voltage | |
| Weight |
The S3J is a standard recovery rectifier diode from Diotec Semiconductor, part of the S3 series. It is designed for general purpose rectification in power supplies and polarity protection circuits.
Key electrical specifications include a maximum repetitive peak reverse voltage of 600V, average forward current of 3A, and a forward voltage of 1.15V at 3A. The reverse recovery time is typically 1.5 µs, making it suitable for 50/60 Hz mains frequency applications. It can handle peak forward surge currents up to 100A (50 Hz) or 110A (60 Hz).

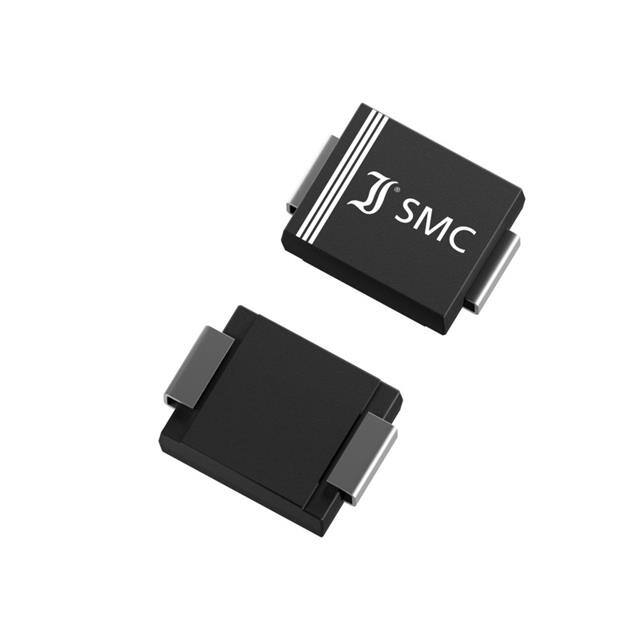

The diode is housed in a surface mount DO-214AB (SMC) package, with a weight of 0.21g. It is supplied in tape and reel packaging with 3000 pieces per reel. The operating junction temperature range is -50°C to 150°C.
The S3J is RoHS compliant (exempt 7a), REACH compliant, and MSL level 1. Variants with AEC-Q101 compliance (-Q) or qualification (-AQ) are available. The HS code is 85411000.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.19 | $0.19 |
| 100+ | $0.12 | $0.12 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.08 | $0.08 |
| 3,000+ | $0.07 | $0.07 |
| 6,000+ | $0.06 | $0.06 |
| 9,000+ | $0.06 | $0.06 |
| 15,000+ | $0.05 | $0.05 |
| 21,000+ | $0.05 | $0.05 |
| 30,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V.
3A.
Maximum 1.15V at 3A.
Typically 1.5 µs (1500 ns) under test conditions IF=0.5A, IR=1A to IR=0.25A.
Surface mount DO-214AB (SMC).
100A at 50 Hz (10 ms) and 110A at 60 Hz (8.3 ms).
-50°C to 150°C.
