Mfr Part #:

S3F9488XZZ-QZ88

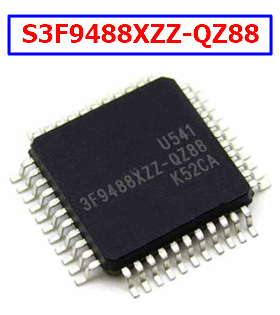

The Samsung Electronics S3F9488XZZ-QZ88 is an 8-bit microcontroller featuring the SAM88RCRI CPU core and 8KB of MTP ROM. It includes a 9-channel 10-bit ADC and an asynchronous UART.

✓ Total Stock: 3,440 pcs

$ Price Range: $0.99

S3F9488XZZ-QZ88 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Rayichip ✓ Non-Authorised Inventory information	1,600 pcs On Request	1600 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,084 pcs On Request	1084 pcs	On Request	1	On Request	On Request	1346+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	756 pcs On Request	756 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

S3F9488XZZ-QZ88 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Samsung Electronics
RAM Size	208 Byte
Watchdog Timer	Yes

View Similar Products (0)

S3F9488XZZ-QZ88 Description

Short technical summary and product information.

The Samsung Electronics S3F9488XZZ-QZ88 is a versatile 8-bit CMOS microcontroller from the SAM88RCRI family. It offers a robust set of integrated peripherals designed for a wide range of applications.

Key features include the SAM88RCRI CPU core, 208 bytes of general-purpose RAM, and 8KB of on-chip multi-time programmable (MTP) ROM. For analog interfacing, it provides an Analog-to-Digital Converter (ADC) with 9 input channels and 10-bit resolution. Communication is handled via an asynchronous UART. The microcontroller also incorporates multiple timer/counter functions, including two 8-bit timers with various operating modes, a basic timer for oscillation stabilization, a watch timer for real-time clock functions, and a watchdog timer.

With ten interrupt sources, configurable I/O ports, and support for LCD controllers/drivers, this microcontroller offers flexibility in system design. It is available in multiple package types, including QFP44, DIP42, SOP, and DIP32, making it suitable for various board layouts and manufacturing processes. The S3F9488XZZ-QZ88 is ideal for applications requiring simple timer/counter functions, ADC capabilities, and LED or LCD displays.

S3F9488XZZ-QZ88 Quick Information

Product Type: 8-bit Microcontroller

Canonical Name: Samsung Electronics S3F9488XZZ-QZ88 8-bit Microcontroller

Subcategory: 8-bit

S3F9488XZZ-QZ88 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

S3F9488XZZ-QZ88 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

S3F9488XZZ-QZ88 Features

8-bit CMOS microcontroller with SAM88RCRI CPU core.
Includes 8KB multi-time programmable (MTP) ROM.
Features a 9-channel, 10-bit Analog-to-Digital Converter.
Provides an asynchronous UART for serial communication.
Available in QFP44, DIP42, SOP, and DIP32 packages.

S3F9488XZZ-QZ88 Applications

Suitable for home appliance control.
Ideal for embedded system designs.
Used in devices with simple timer functions.
Applicable for LED and LCD display interfaces.

S3F9488XZZ-QZ88 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the CPU core of the S3F9488XZZ-QZ88?

The CPU core is SAM88RCRI.

How much RAM does the S3F9488XZZ-QZ88 have?

It has 208 bytes of general purpose RAM.

What is the ROM size of the S3F9488XZZ-QZ88?

The S3F9488XZZ-QZ88 has 8 Kbyte of internal multi-time programmable ROM.

How many analog input channels does the A/D converter have?

The A/D converter has 9 input channels.

What is the resolution of the A/D converter?

The A/D converter has a 10-bit resolution.

What package types are available for the S3F9488XZZ-QZ88?

The S3F9488XZZ-QZ88 is available in QFP44, DIP42, SOP, and DIP32 packages.
