| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

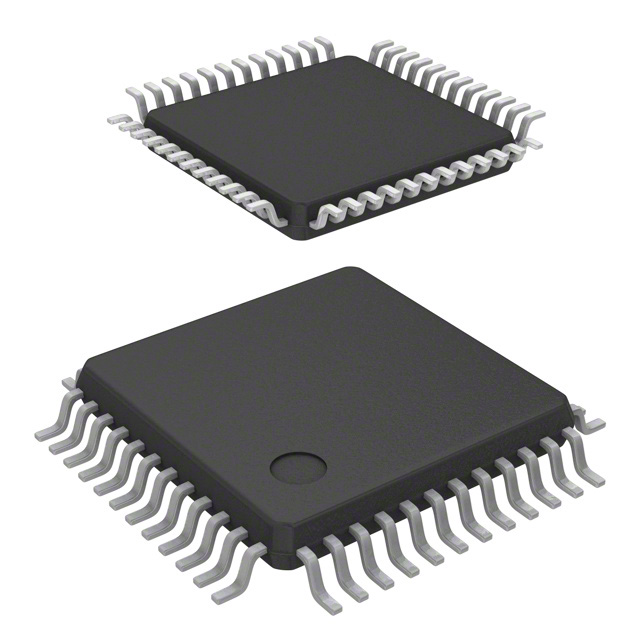

This Zilog S3F8S19XZZ-QR89 is an 8-bit microcontroller from the S3 family, designed for embedded applications. It offers 32KB of Flash program memory and 2KB of RAM, providing ample space for code and data.
The microcontroller operates with a core speed of 12MHz and supports a wide voltage range from 1.8V to 5.5V. Key peripherals include LCD, LVD, LVR, PWM, and WDT, along with standard communication interfaces like I²C, SPI, and UART/USART.
Packaged in a 48-QFP (10x10) format, this component is designed for surface mount applications. It features an internal oscillator and an A/D converter with 10x10b resolution. The operating temperature range is -40°C to 85°C (TA).
This part is suitable for various embedded systems requiring a compact and versatile microcontroller with integrated flash memory and a range of peripherals.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 32KB (32K x 8).
The RAM size is 2K x 8.
The operating voltage range is 1.8V to 5.5V.
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a 48-QFP package.
Connectivity options include I²C, SPI, and UART/USART.
Yes, it features an internal oscillator.
